Installing the Outer Skins

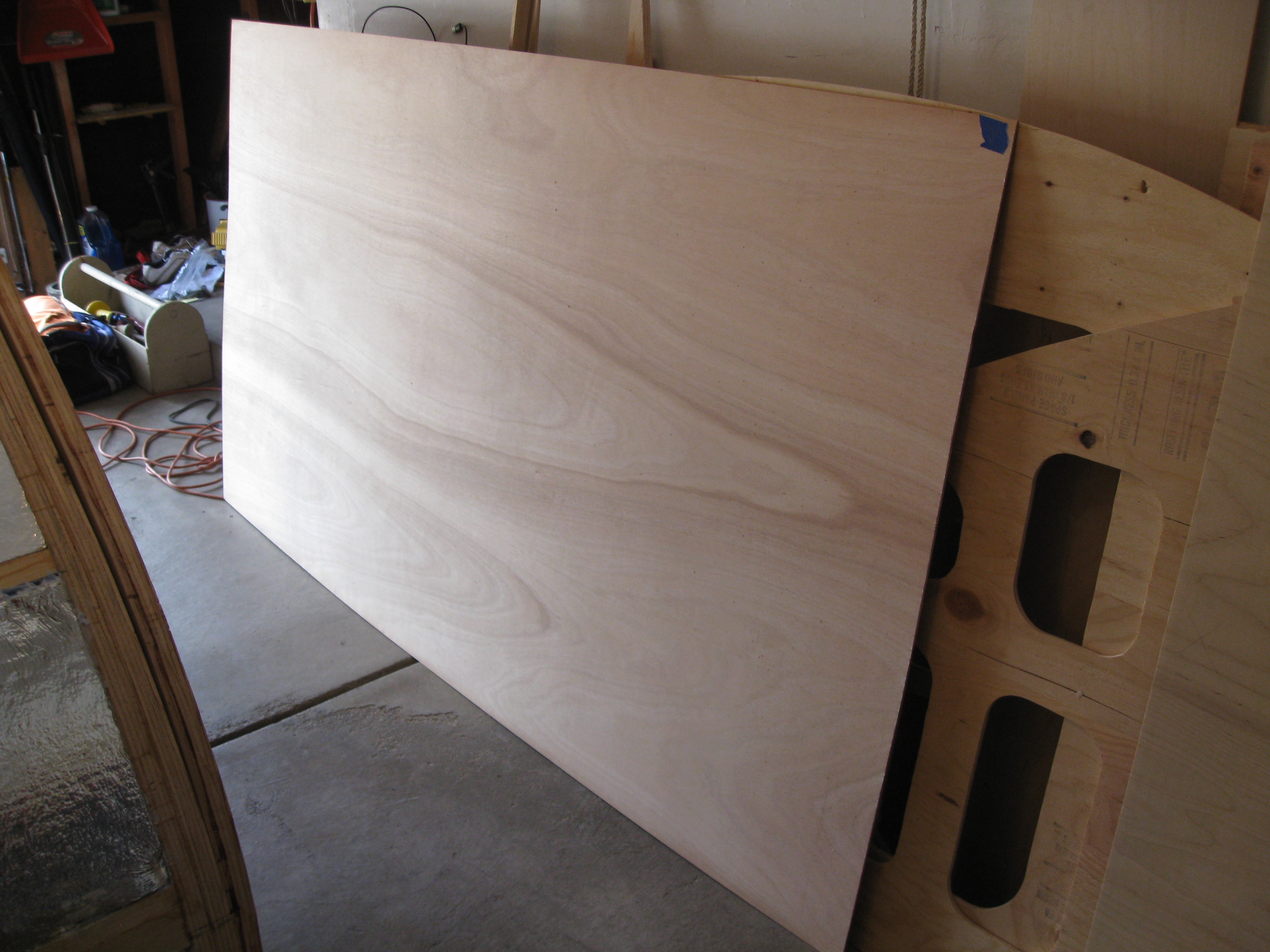

In my search for the perfect wood and finish for the outside of my woody teardrop I went through a variety of options: birch, oak, veneers. None of them allowed for a beautiful dark finish, even staining, nice grain, water resistance, and thin enough to bend to the curves of the profile. After a long search I came across Okoume marine plywood with this beautiful grain similar to mahogany. Okoume is often used in wooden boat hulls and is assembled with waterproof glue. Under a finish of aniline dye, epoxy and varnish I thought it would look fantastic.

Finding a source of okoume might be a bit tricky if you don’t live near the coast or in a boat building area. And if you do find it, it is more expensive than many alternatives.

The okoume bends more easily across the grain so I cut the pieces with the grain flowing from front to back for the sides and across the width of the teardrop for the roof sections.

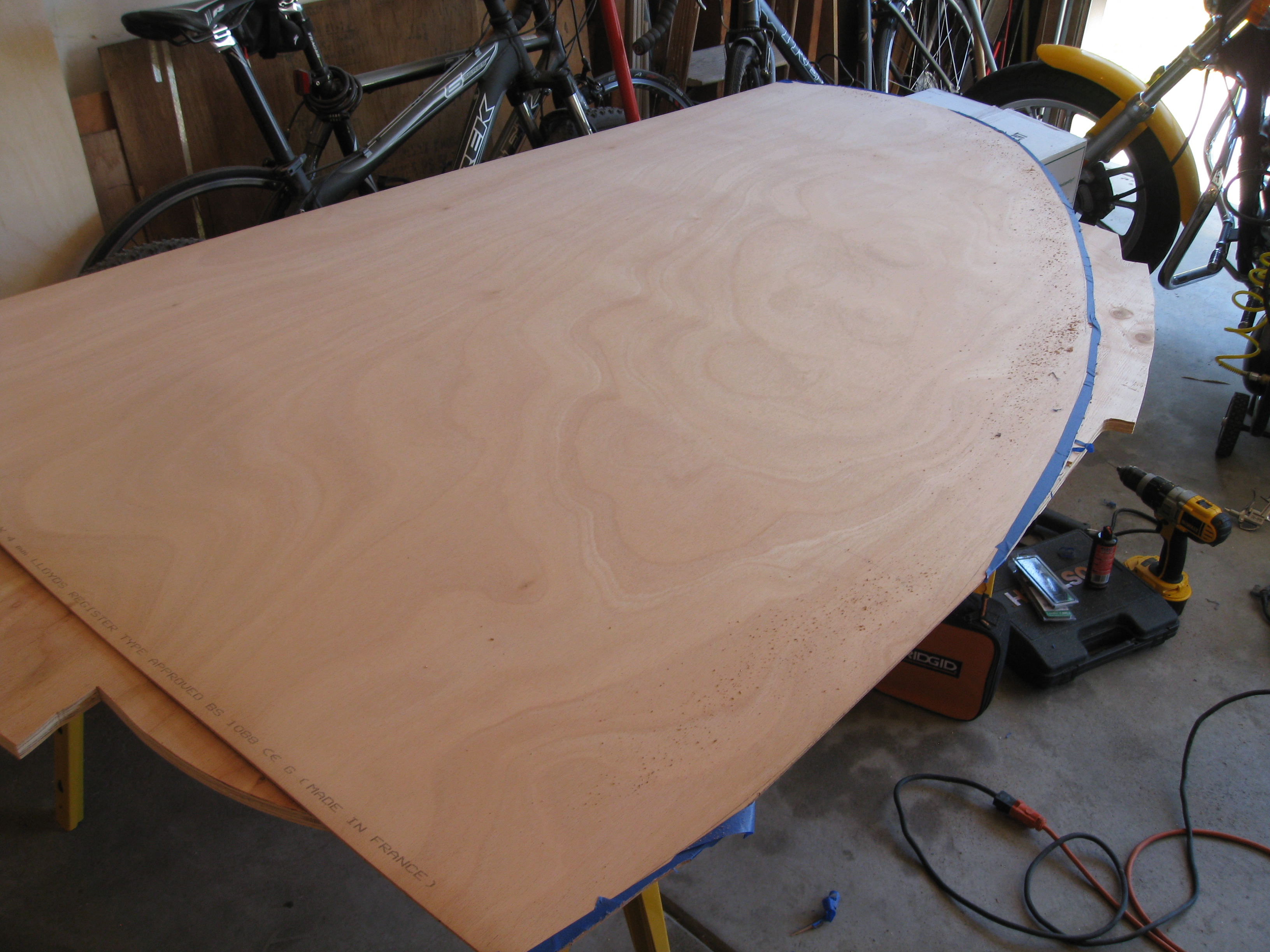

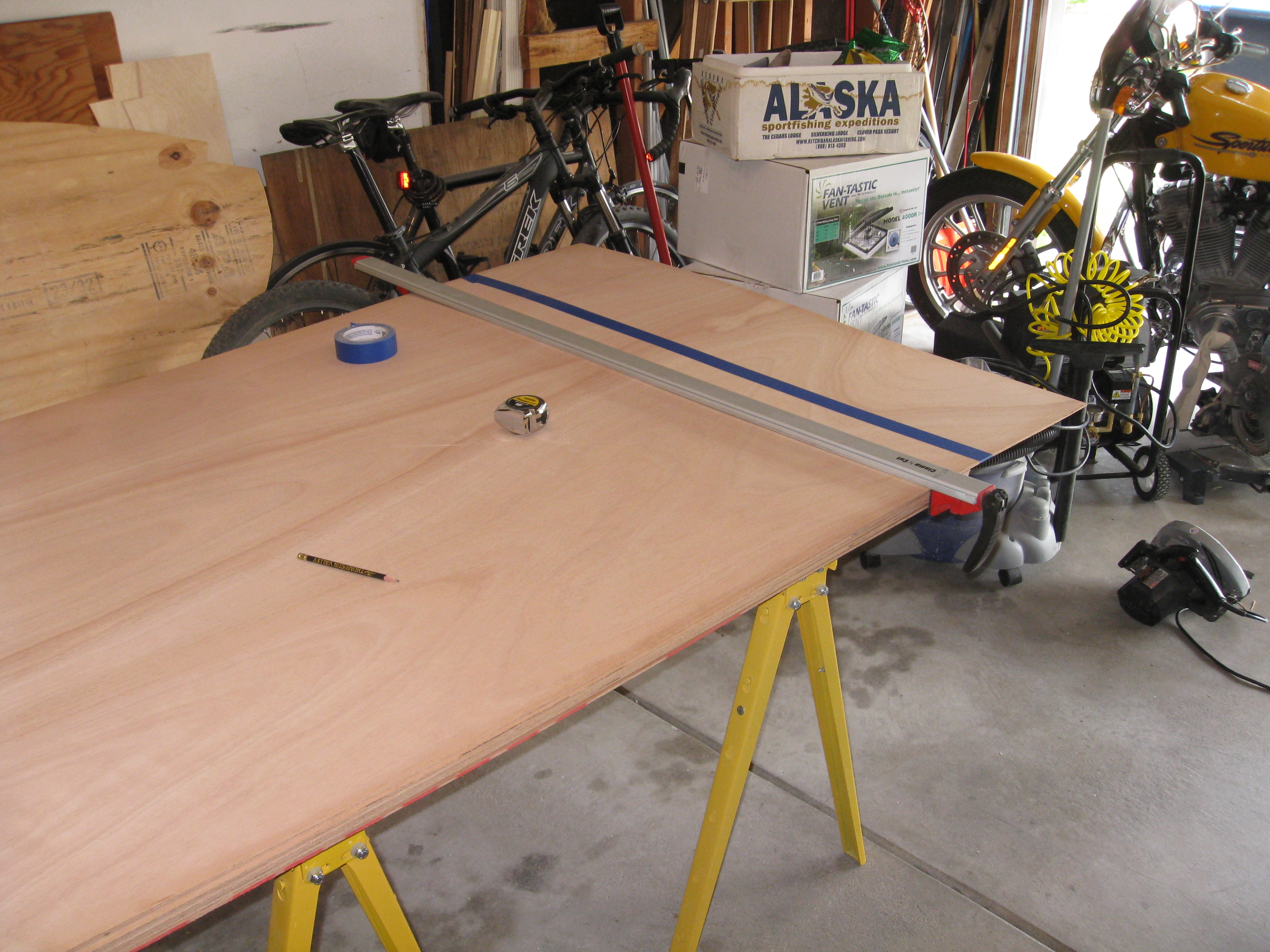

A jigsaw was used to cut the panels to size, tape was used to prevent tear out. The panels were cut an inch or so too large to make sure I had full coverage.

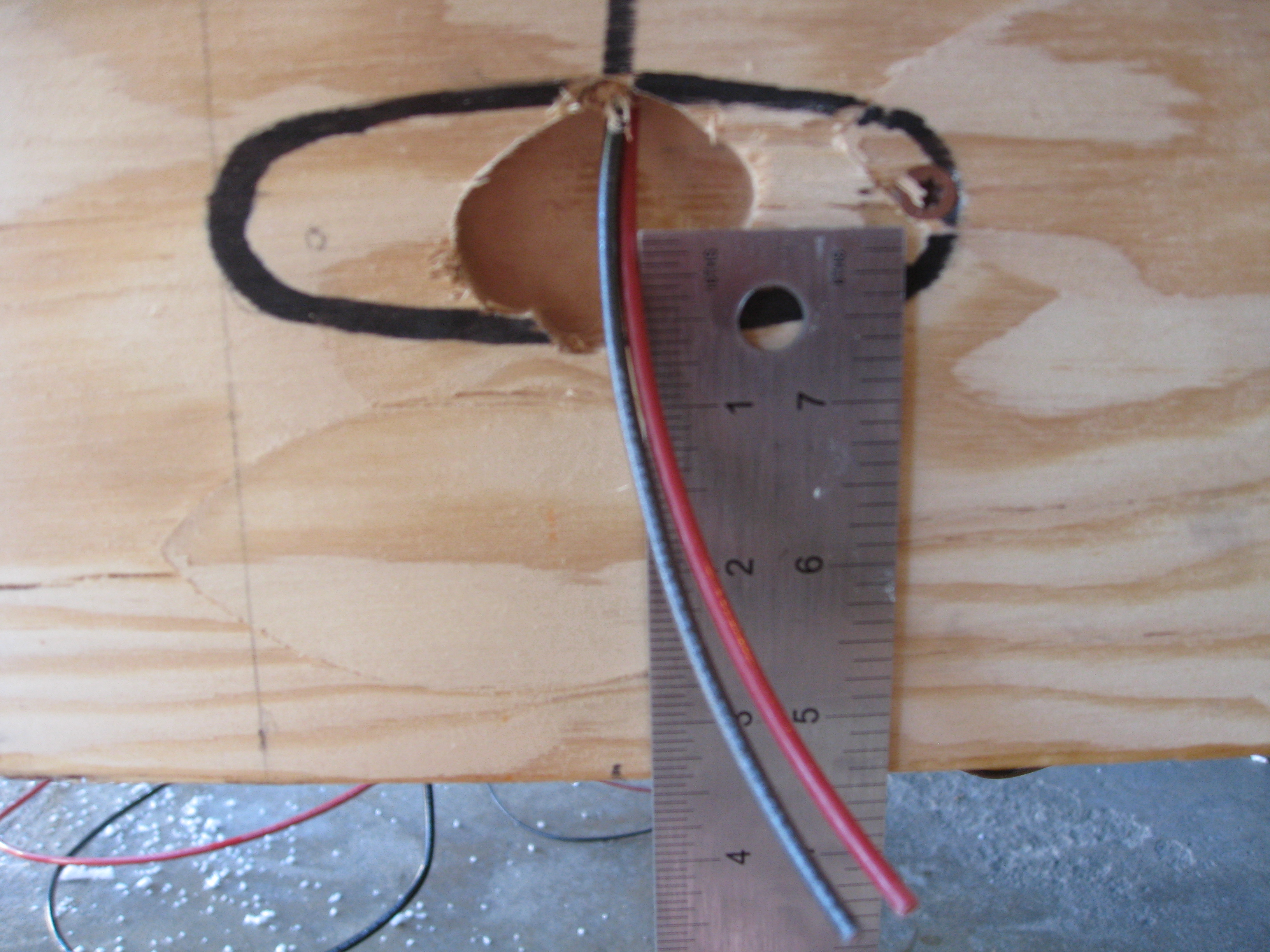

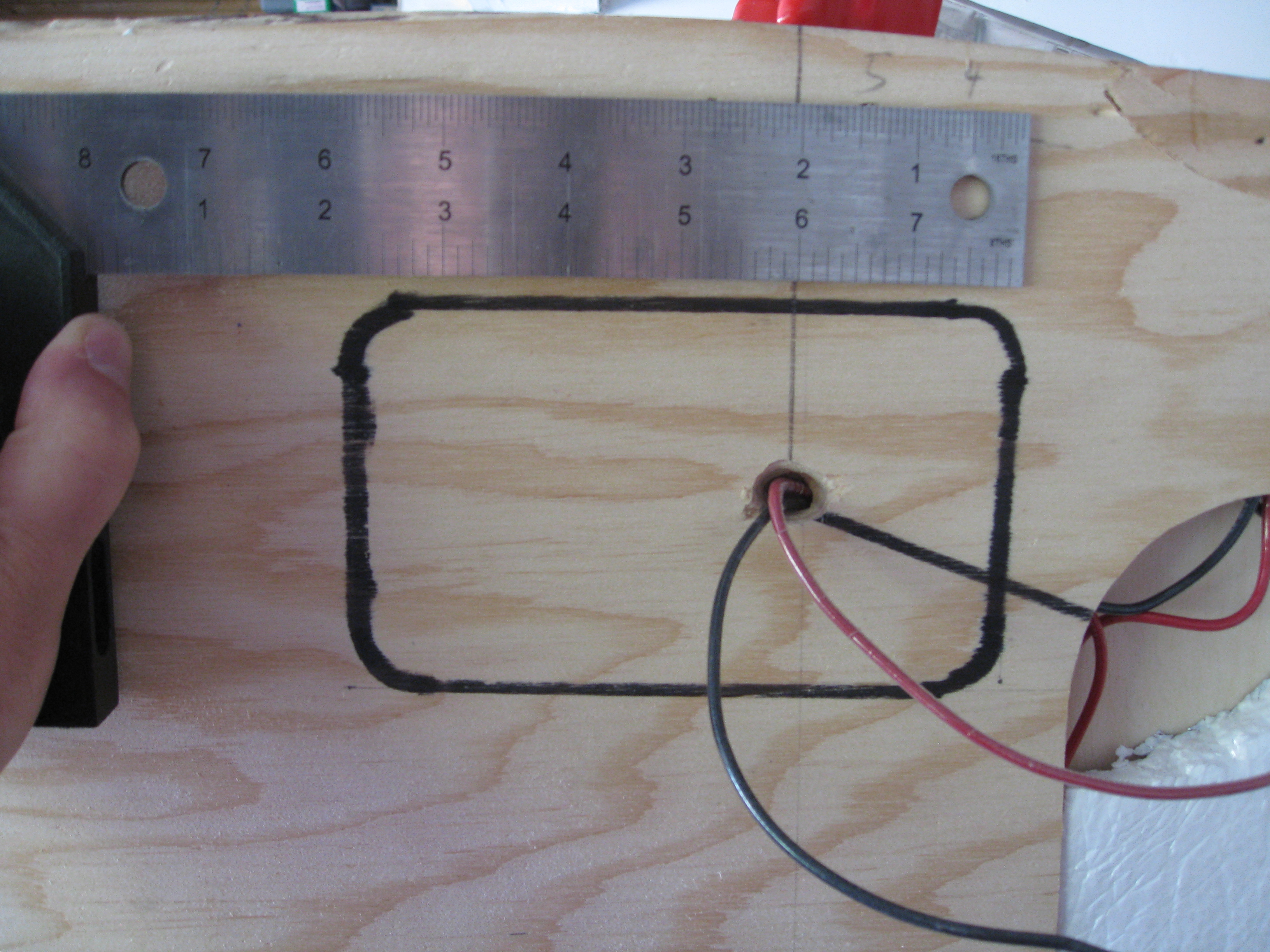

Locating the positioning for the wire holes. I had to pre-drill them in the okoume before mounting them permanently.

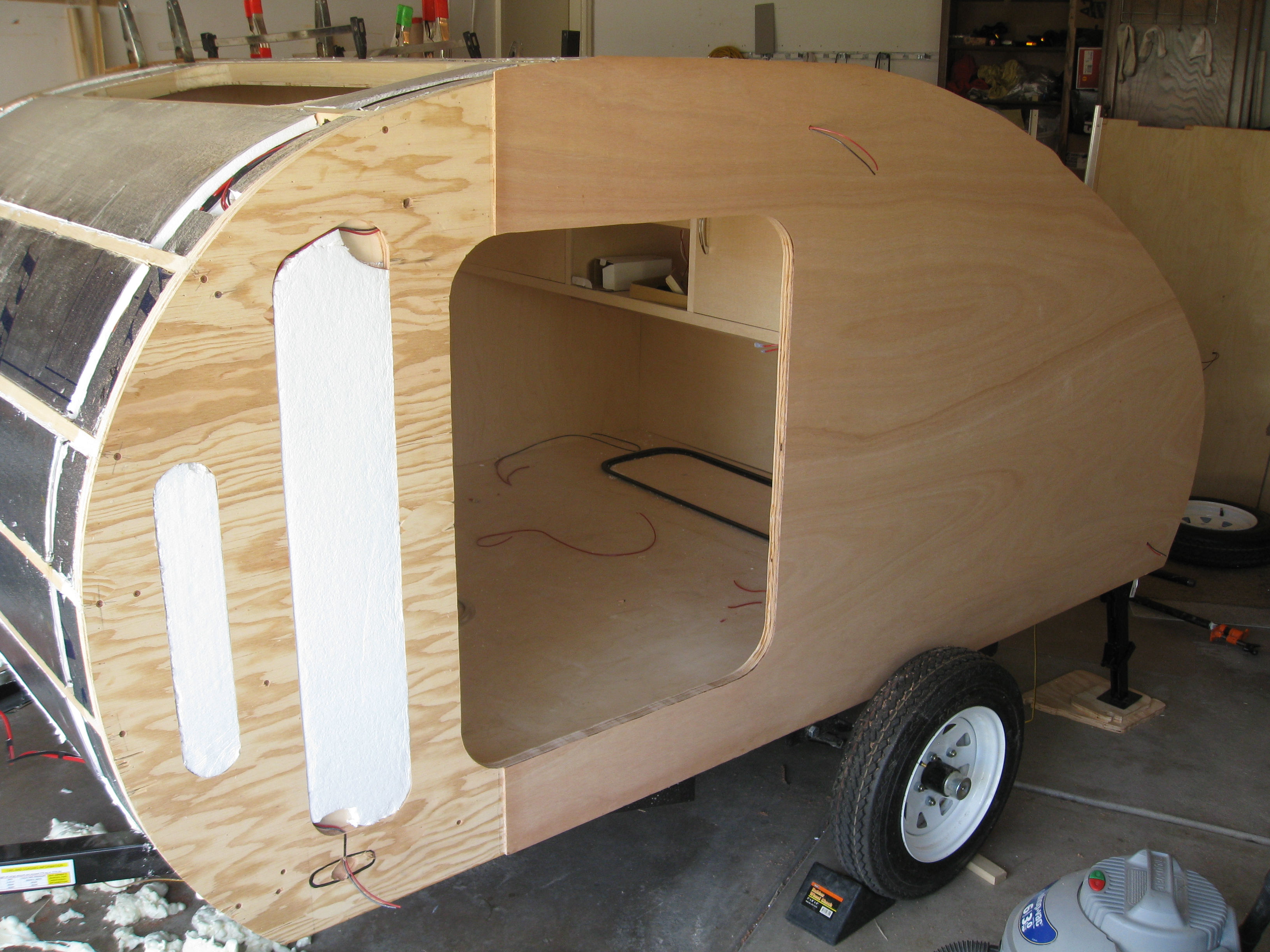

After drilling the holes I dry fit the panels one last time to make sure everything was correct.

The gluing begins. I used PL 300 foamboard adhesive for the insulation sections, and PL Premium contruction adhesive for the wood to wood areas.

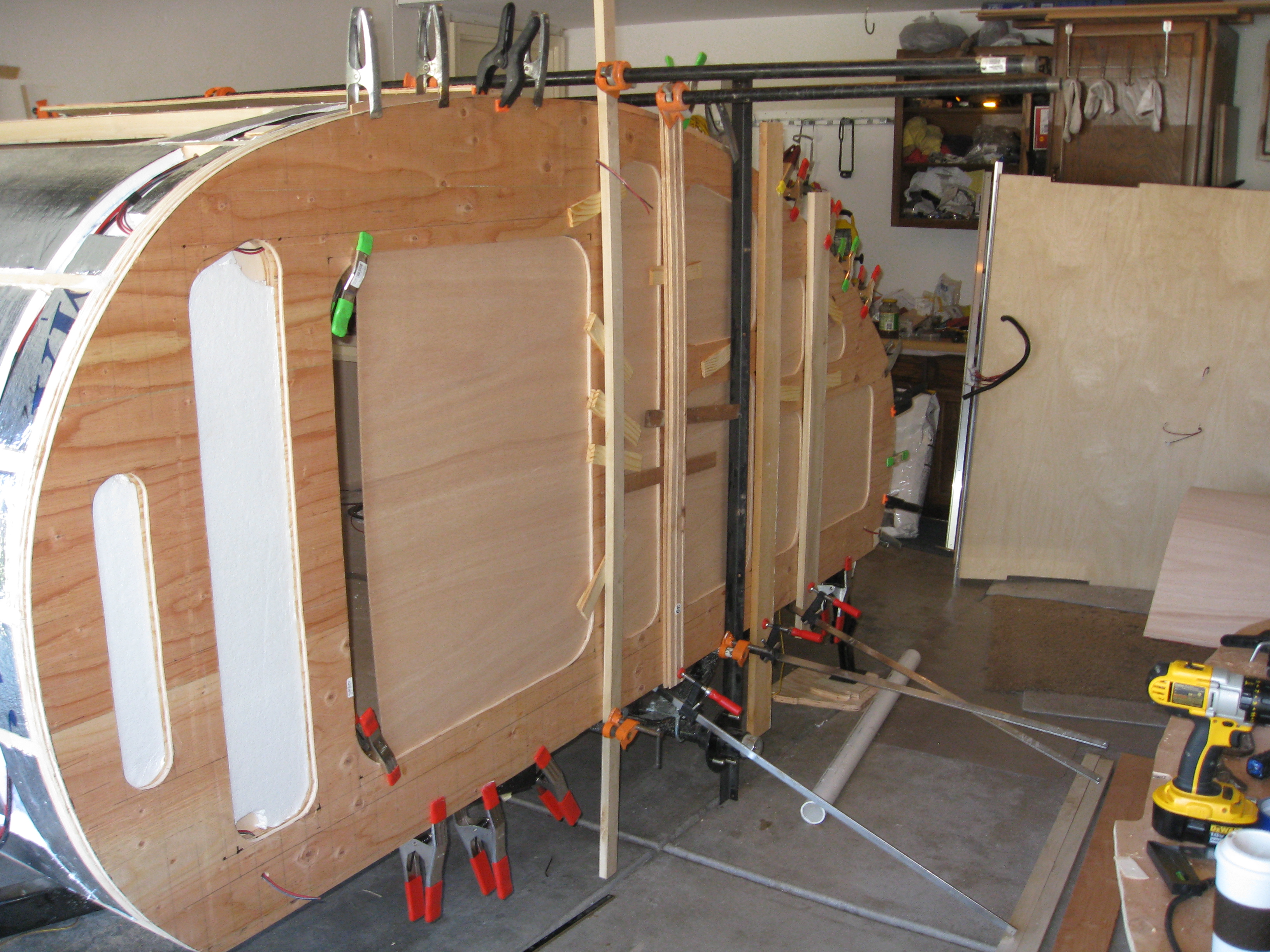

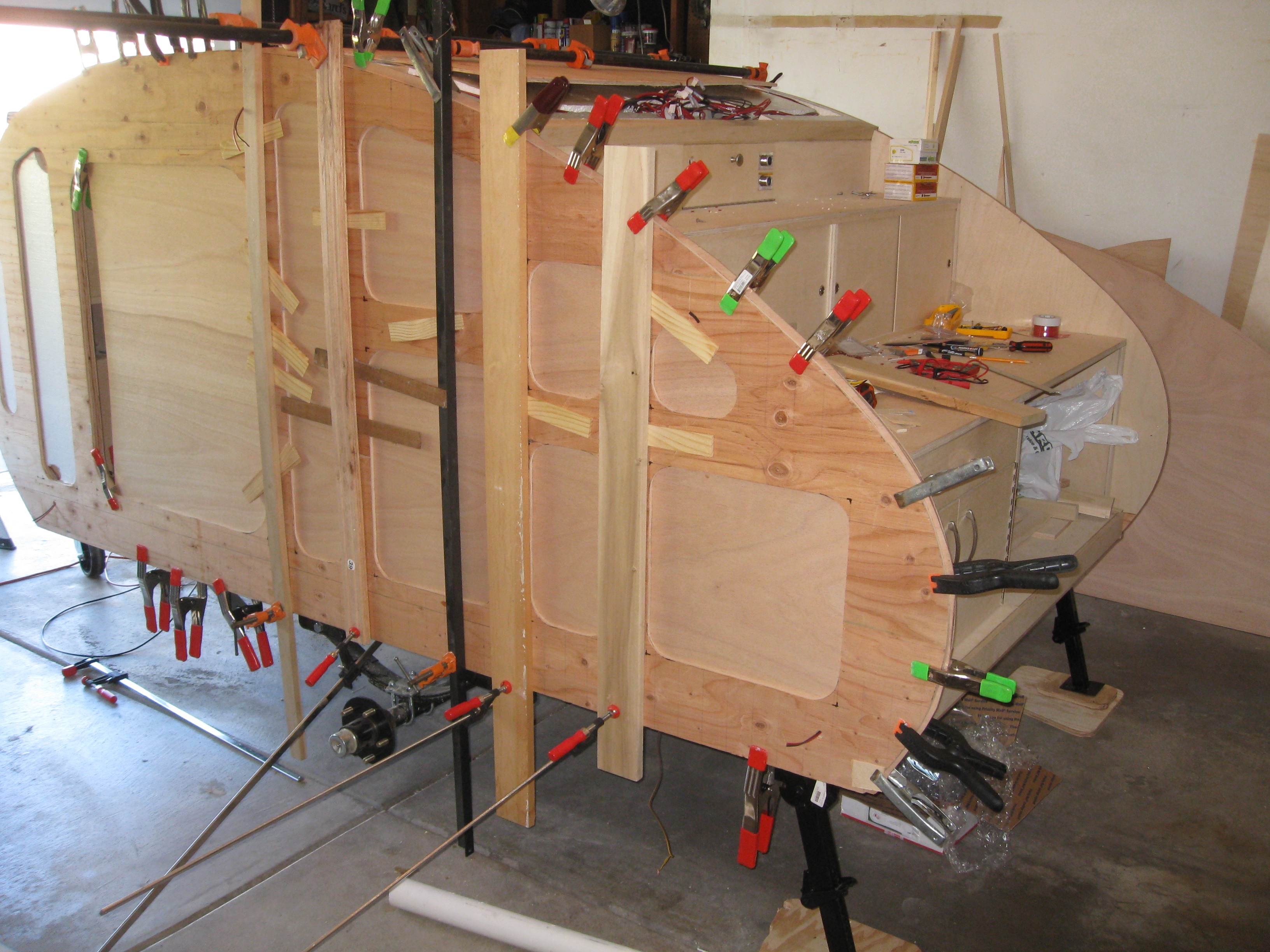

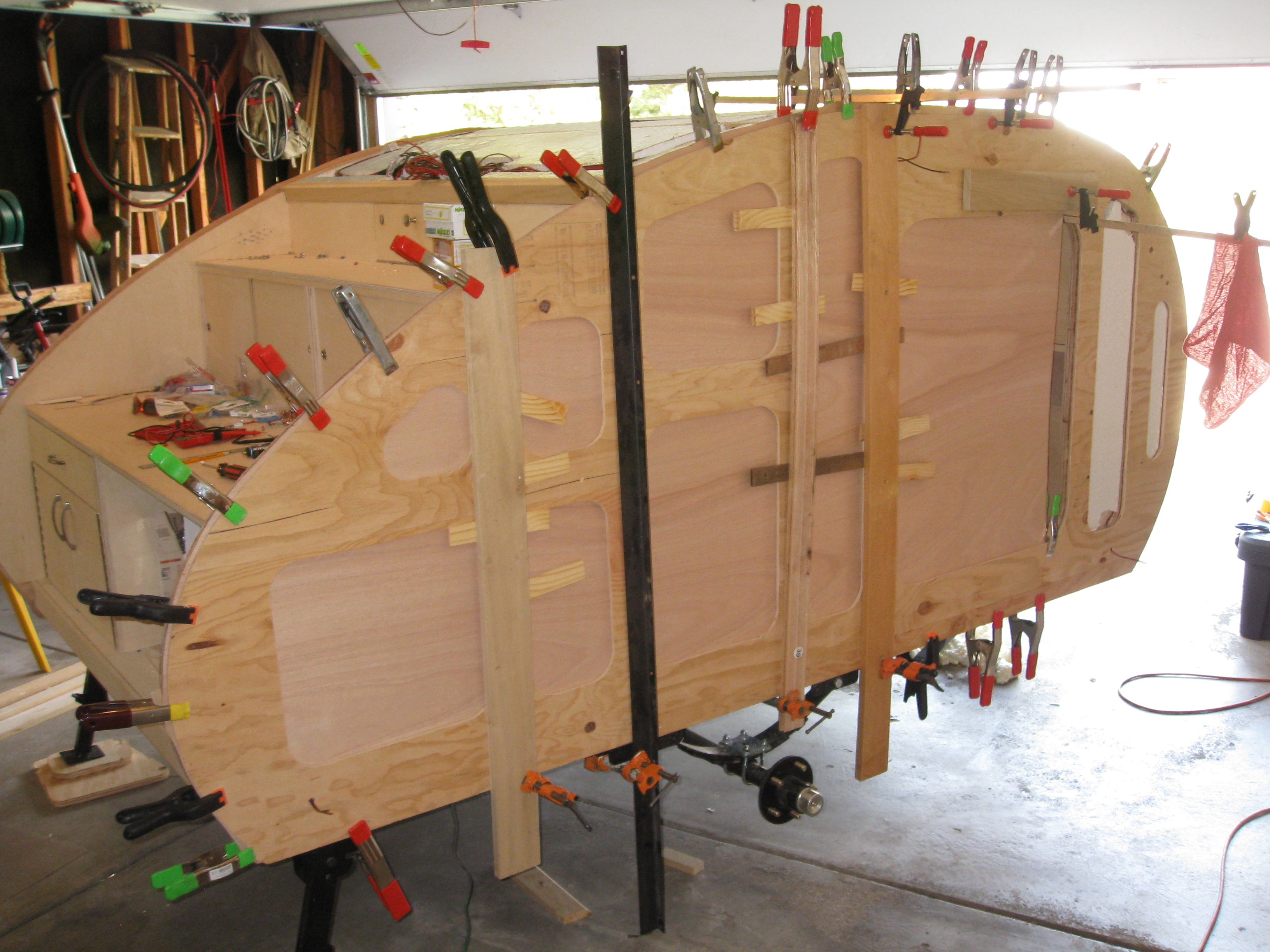

I used the wall templates to help clamp the skins to the walls while the glue dried. The templates had voids where the insulation was so once it was lined up, it was very easy to locate the solid walls and clamp supports across them. The panels were mounted flush with the bottom of the trailer rail.

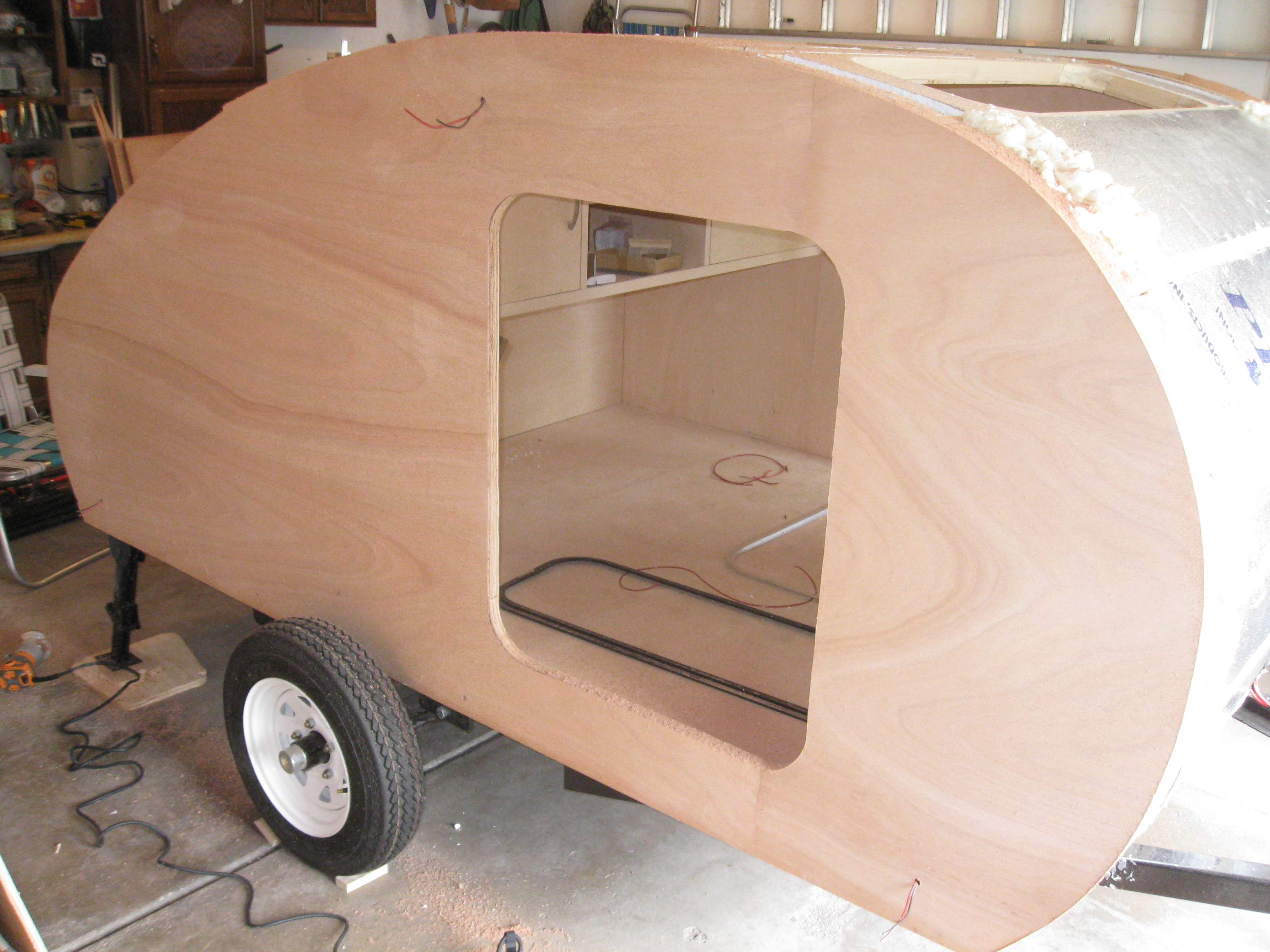

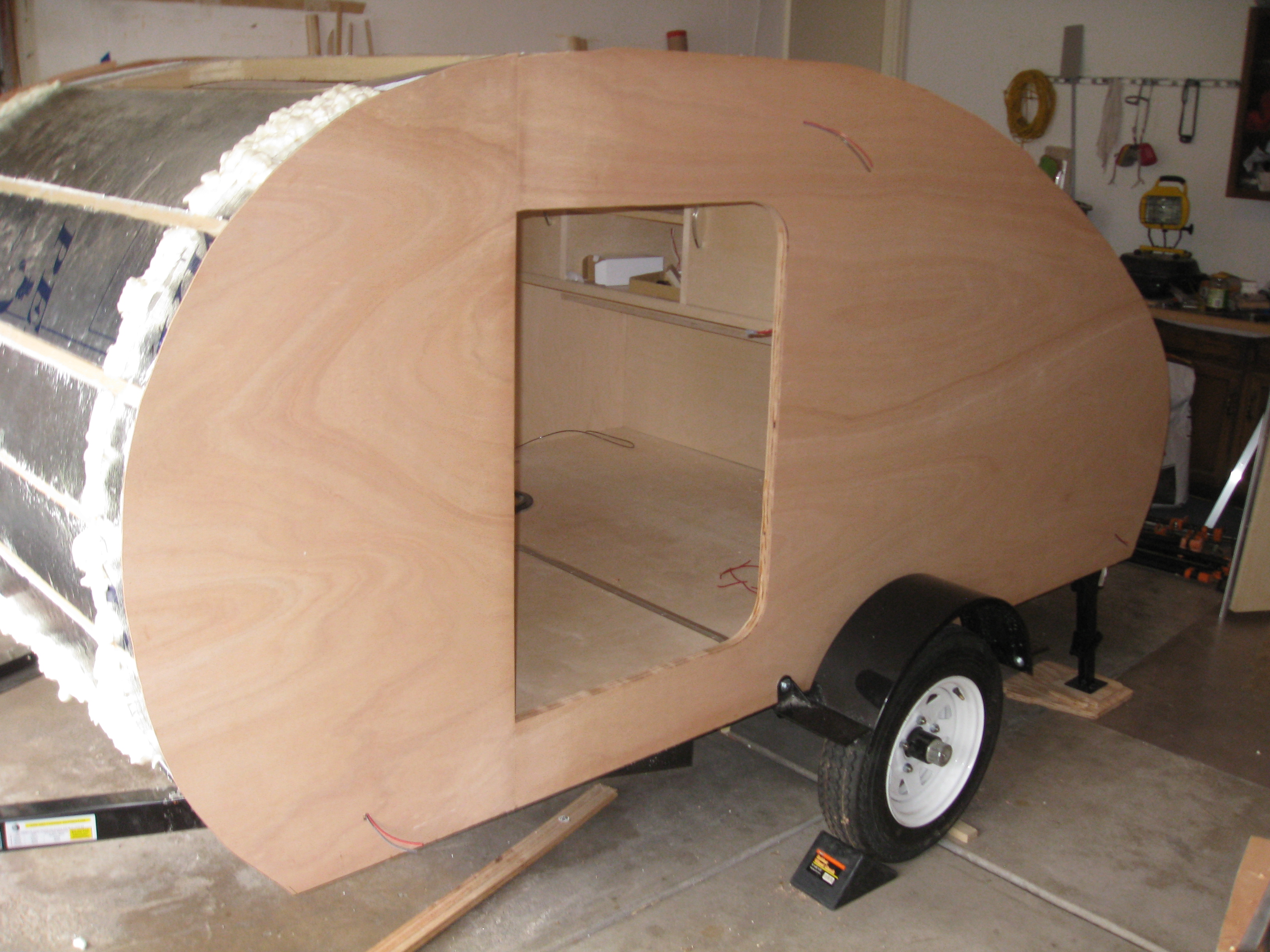

WIth the skin installed I cut the door entrance with a small hand router and a 1/2″ flush trim bit.

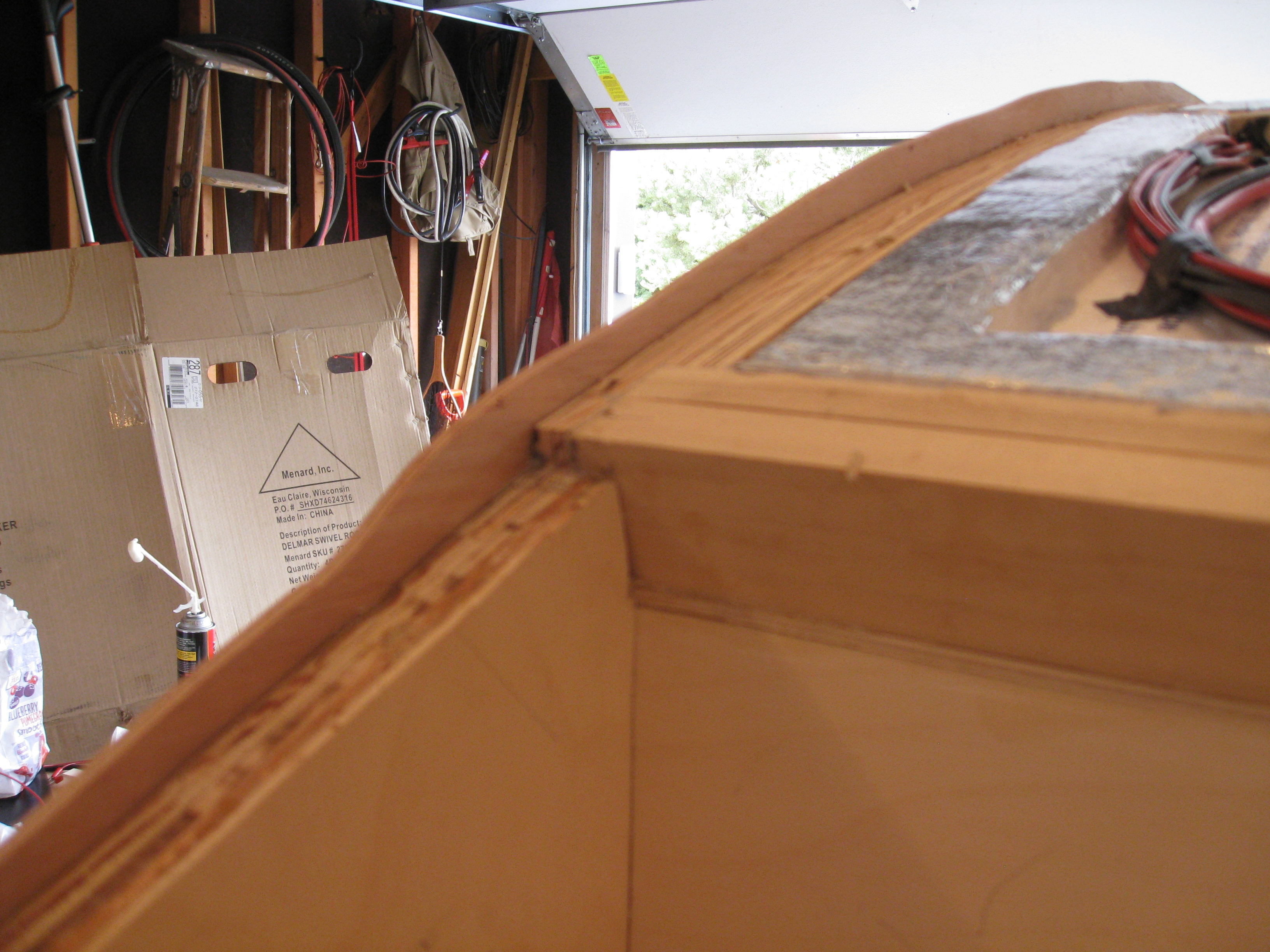

Similar to how I installed the inside skins I left some extra room around the edges to make sure I had full coverage. The edges were trimmed off with the router.
