Roof Spars and Blocking

2

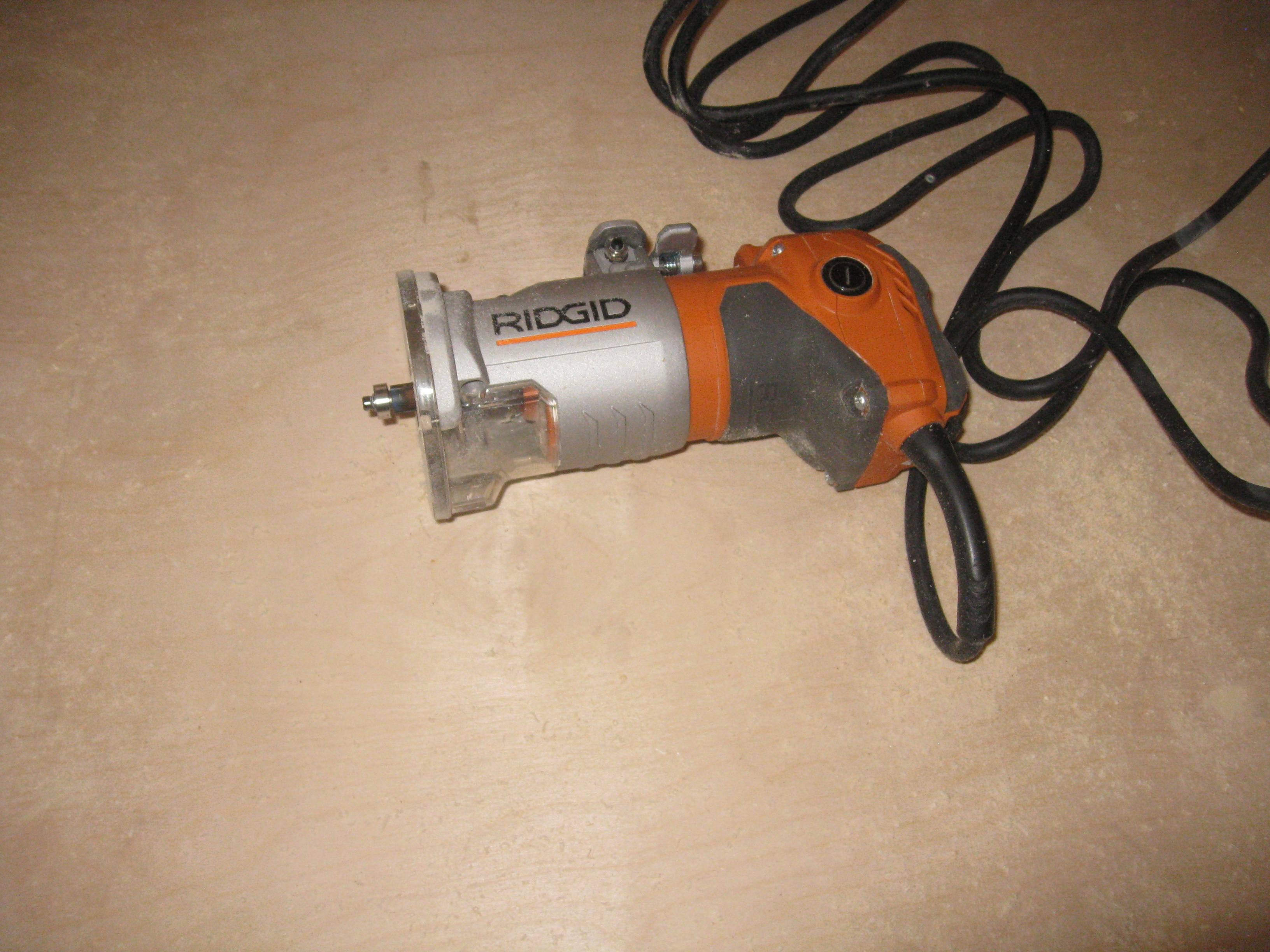

With the roof spars and blocking installed I cut out the window and vent holes with a small hand router and a 1/2″ flush trim bit. Do yourself a favor and make sure you are wearing a dust mask and eye protection.

IMG_5748

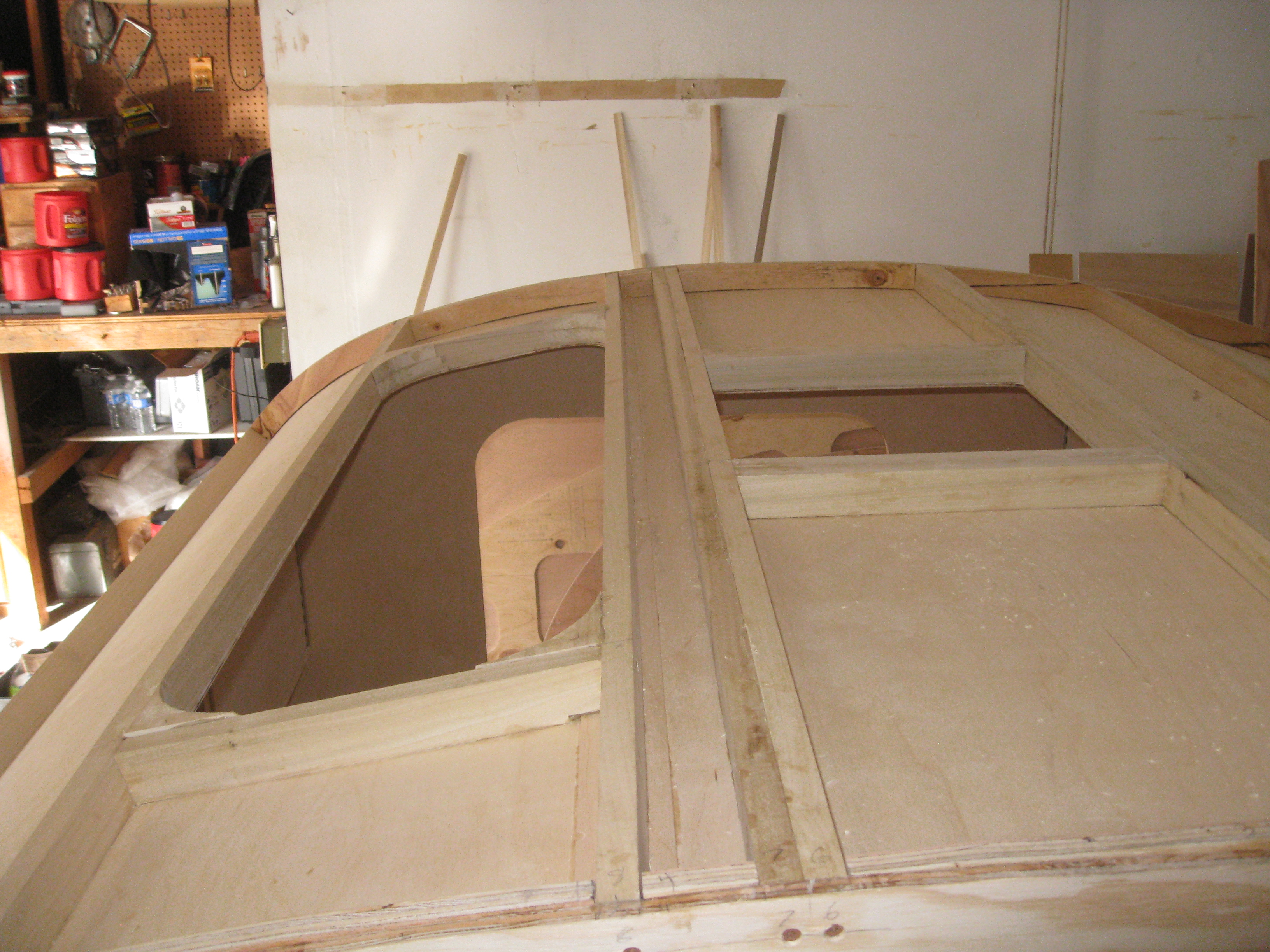

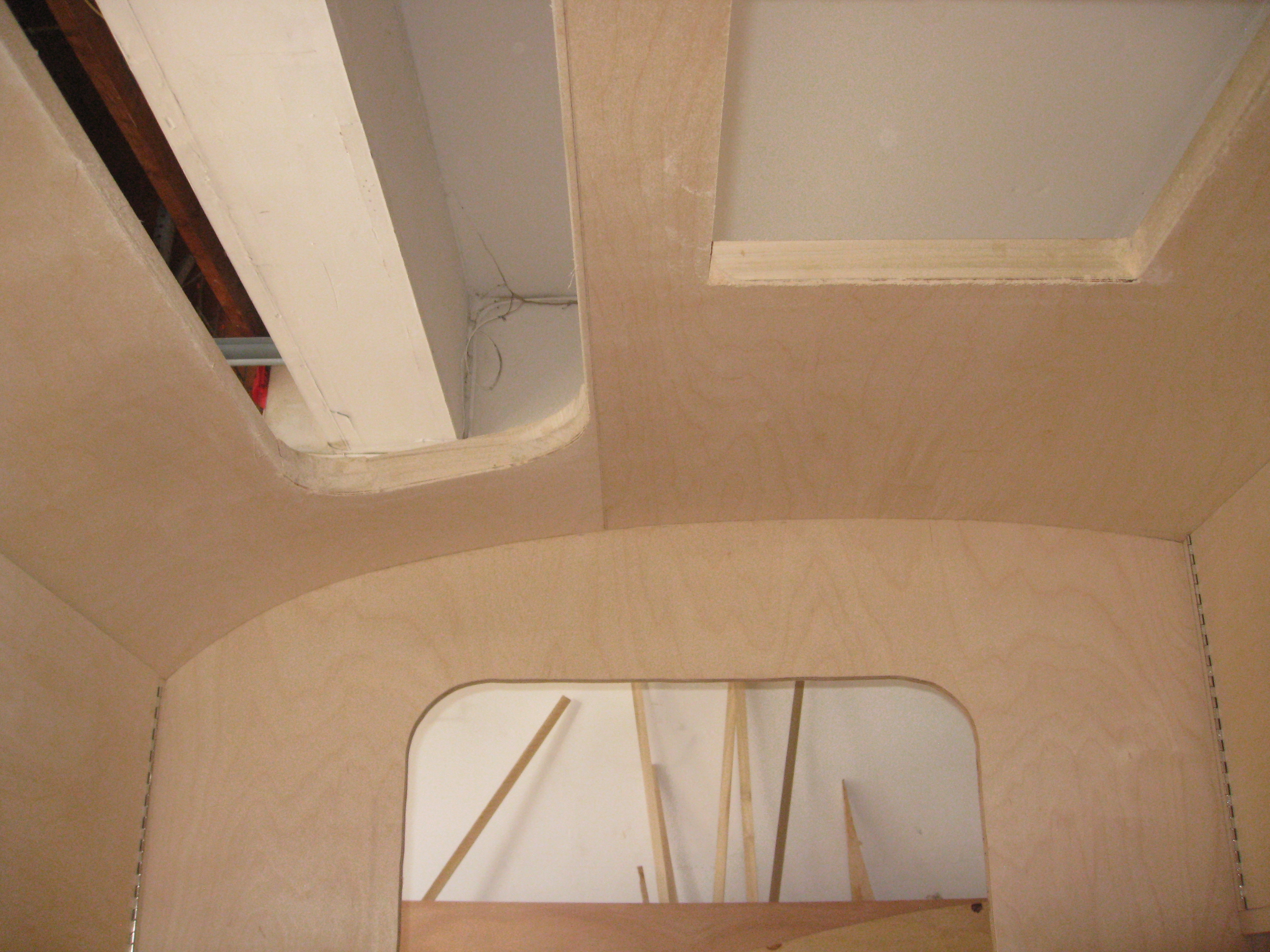

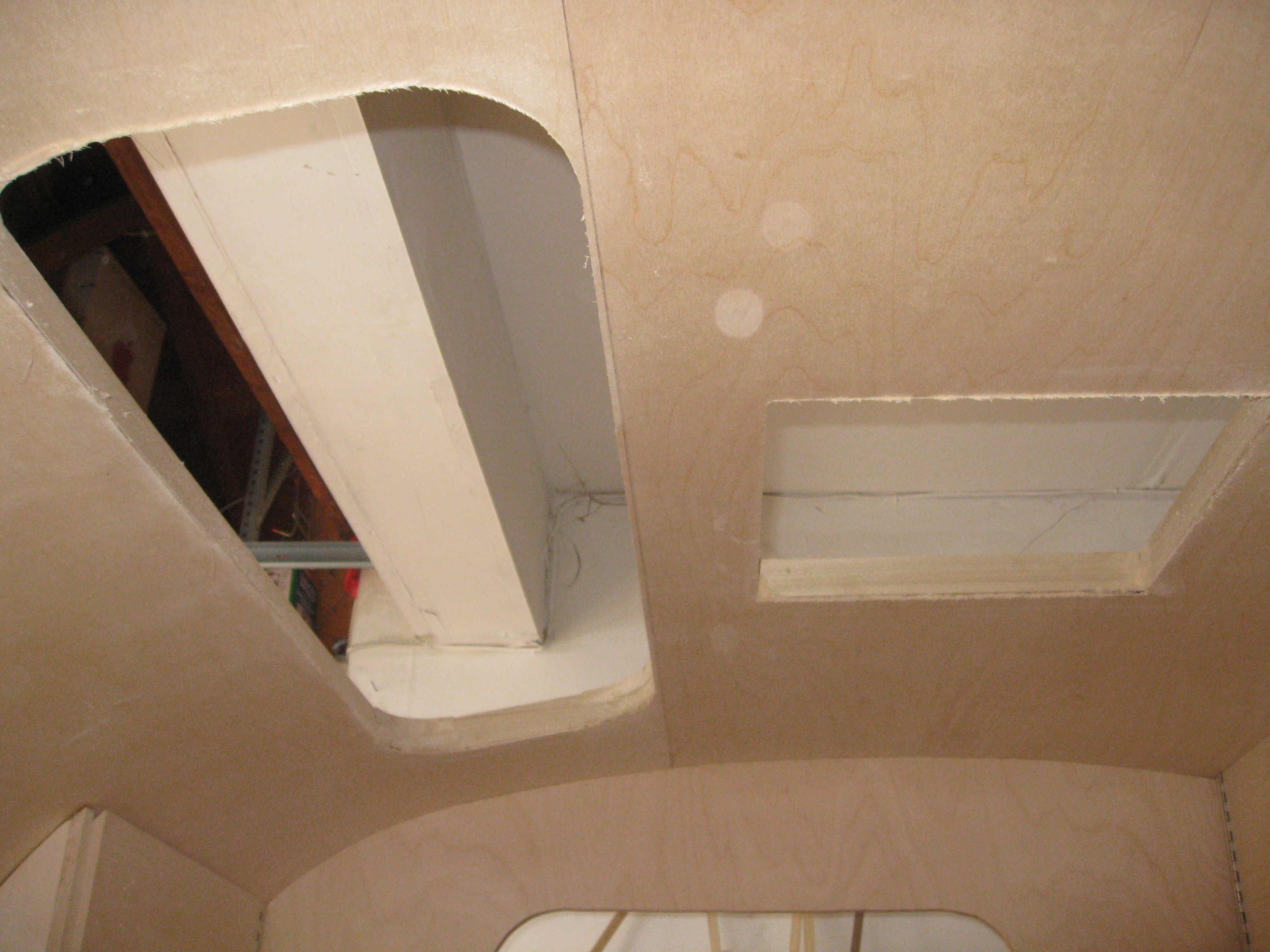

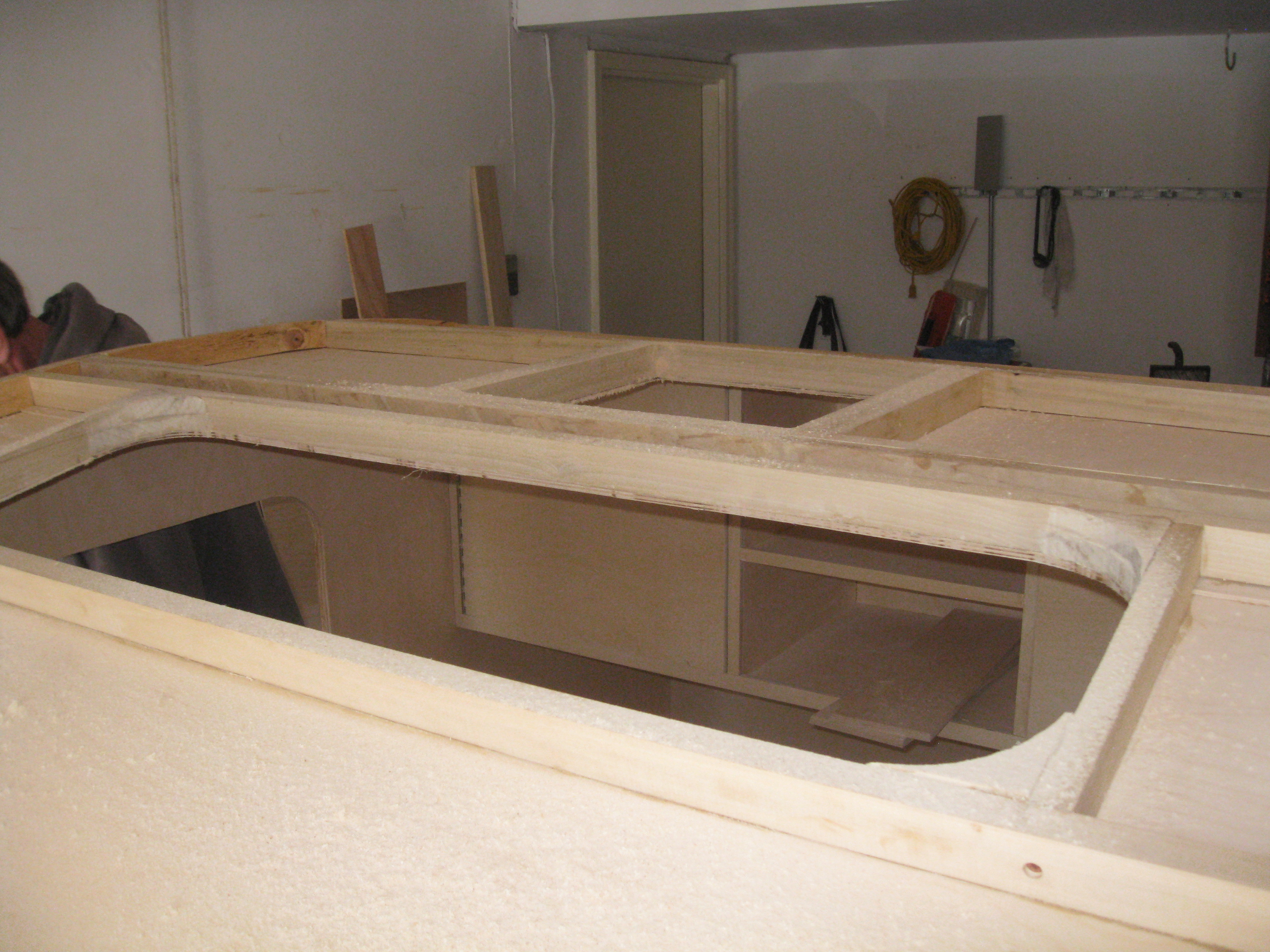

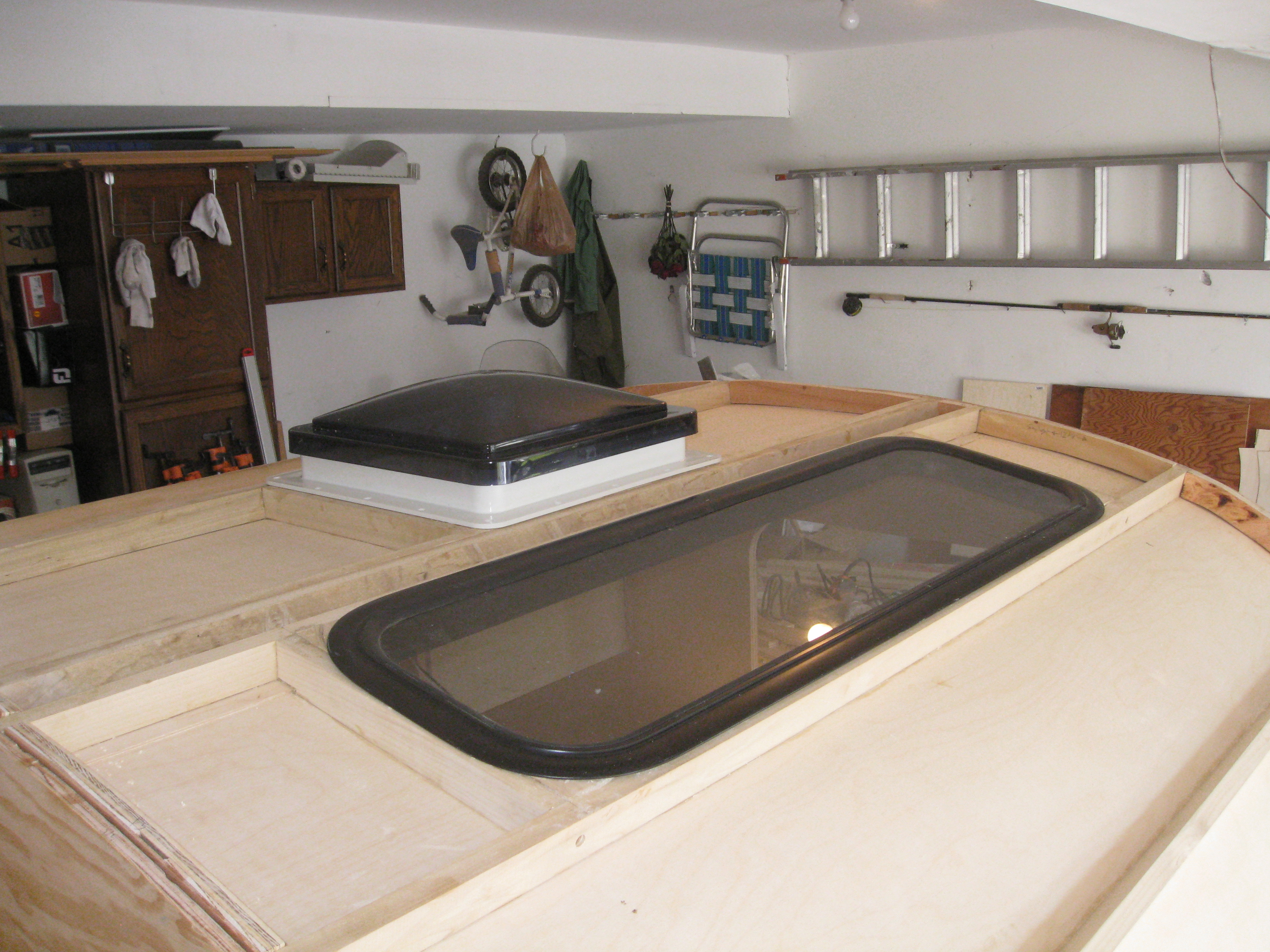

Here you can see the headliner seam but it will be covered by the window trim ring.

IMG_5749IMG_5750IMG_5752IMG_5759IMG_5765

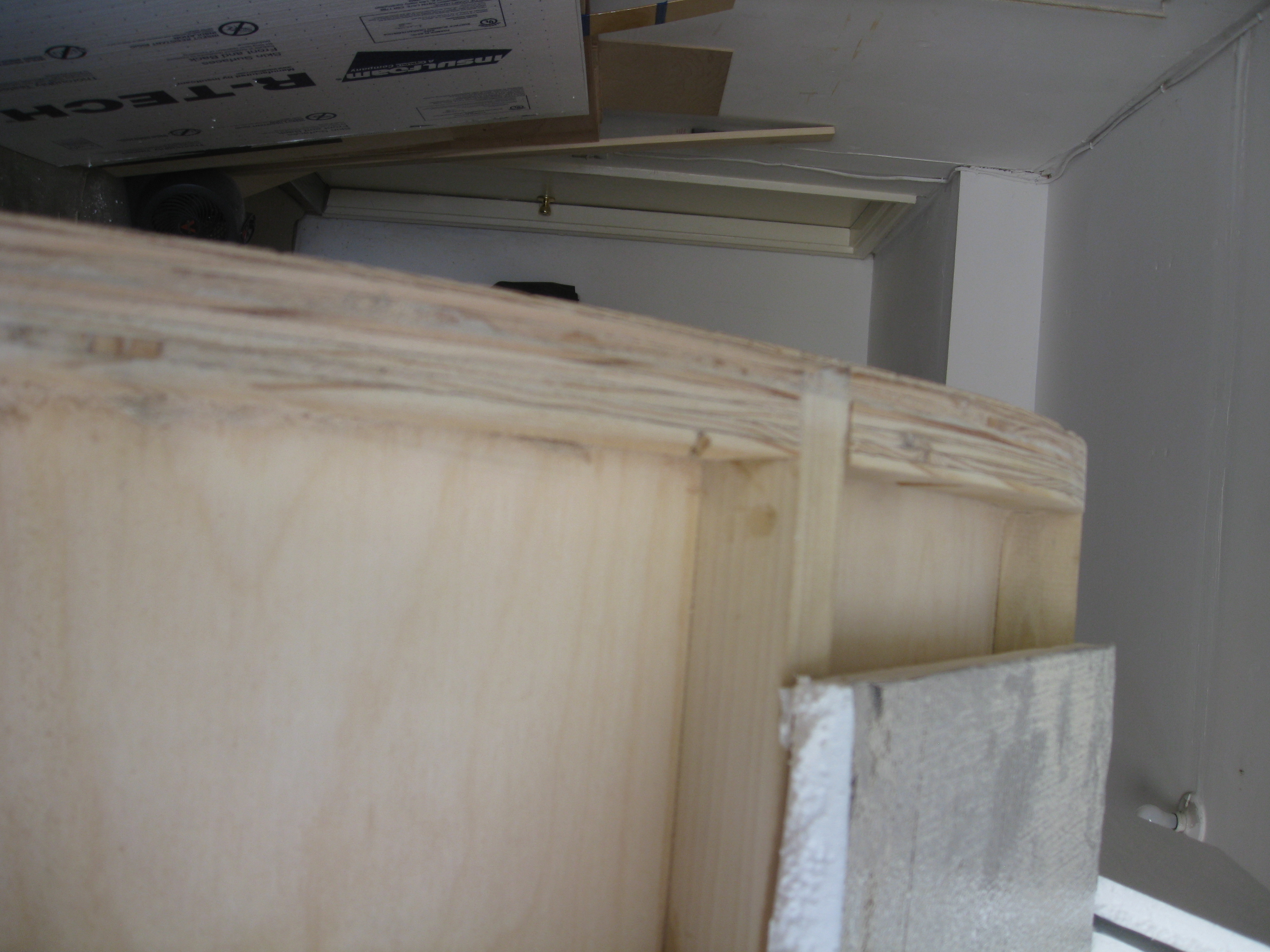

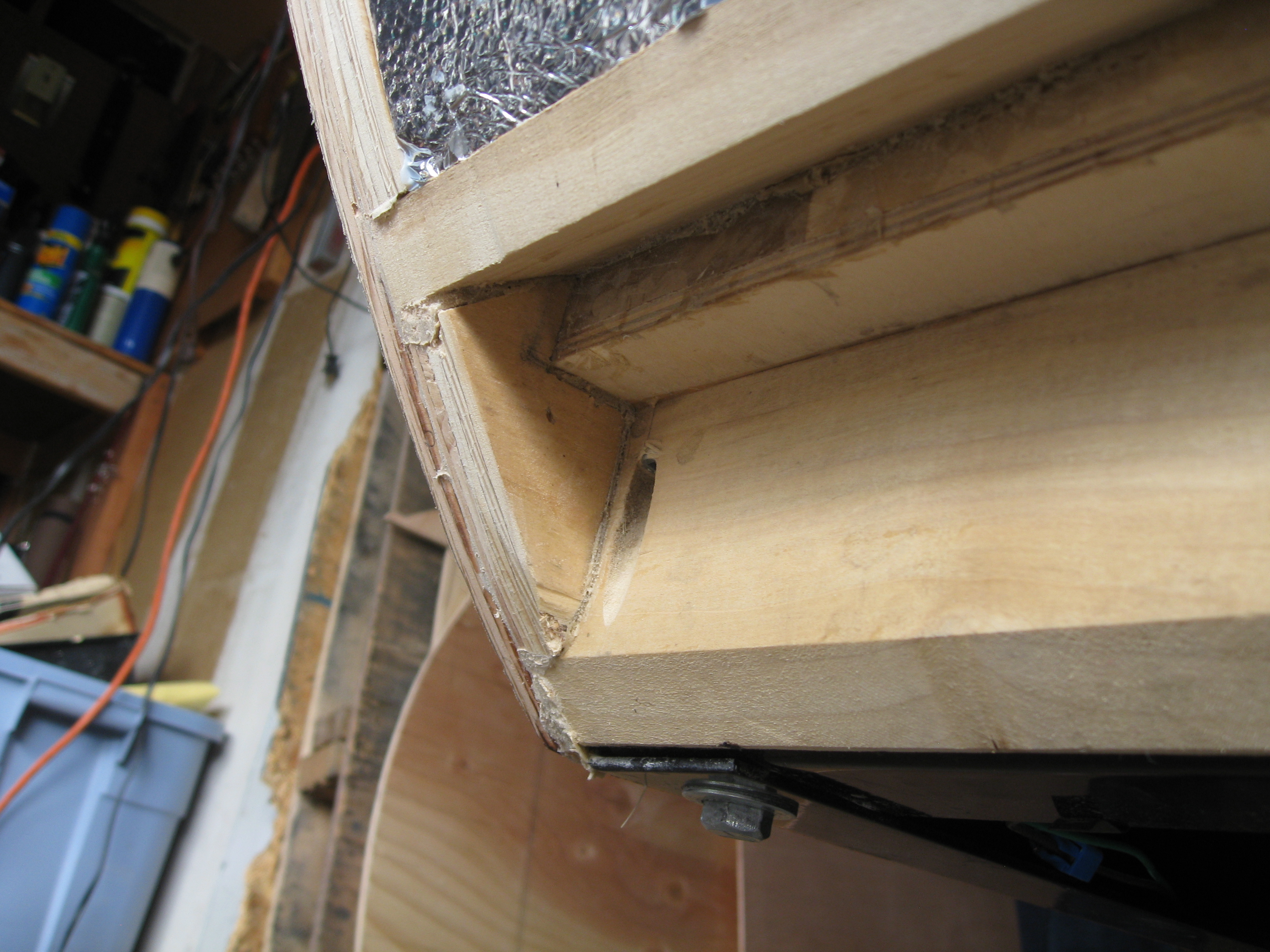

A close up picture of the blocking below the last spar on the front of the teardrop. The headliner is secured by this final spar to the deck.

IMG_6133IMG_5890

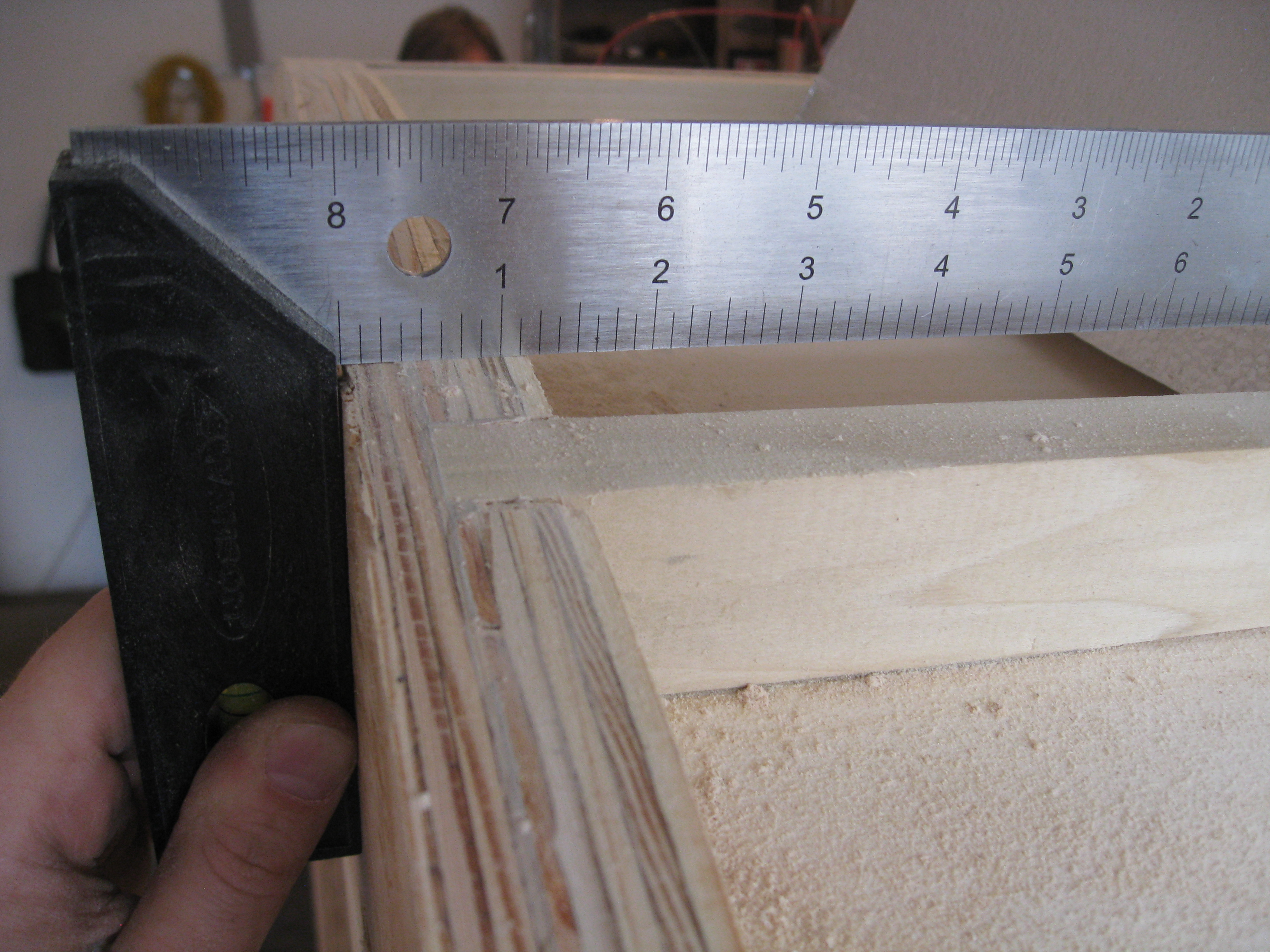

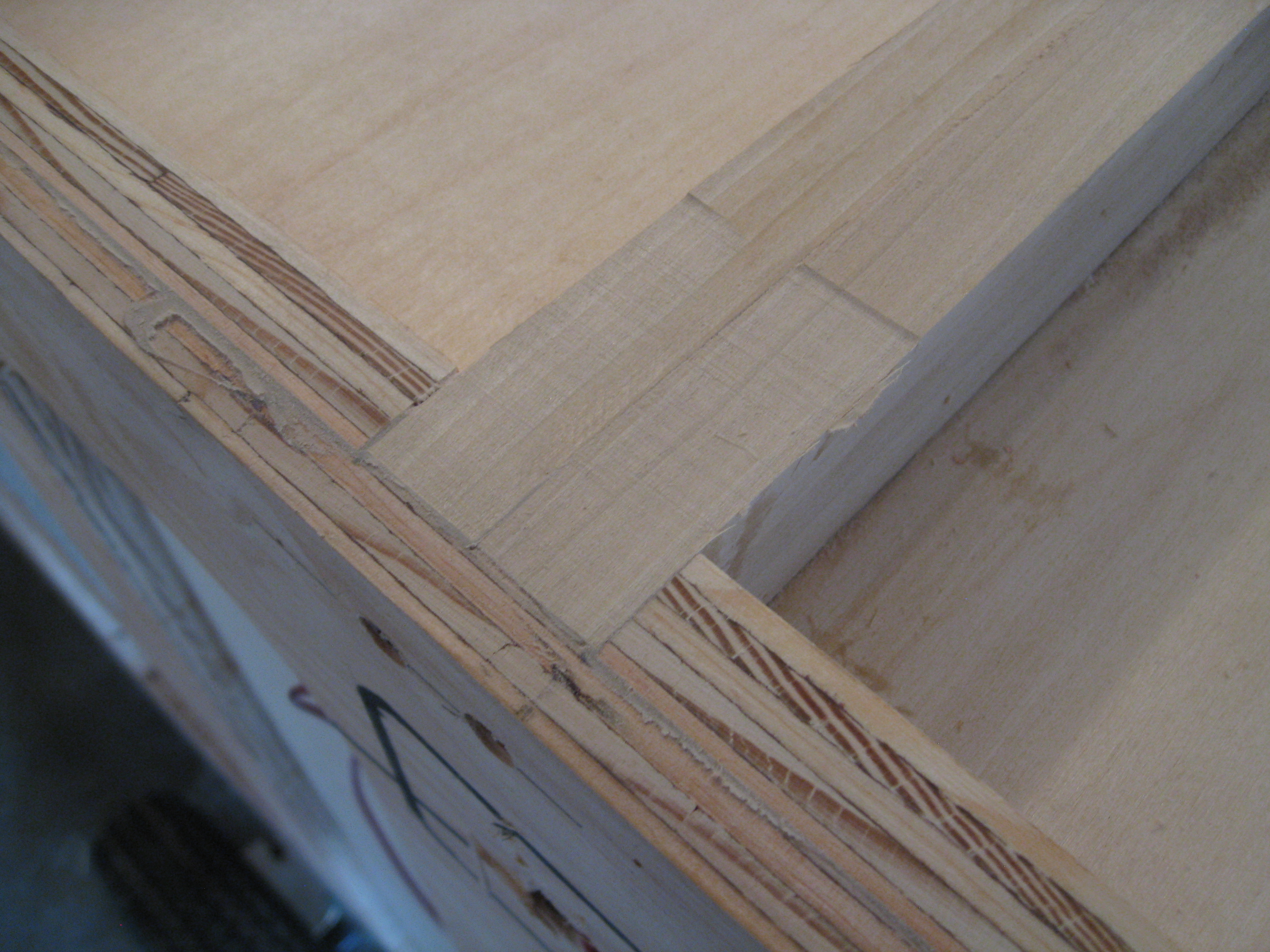

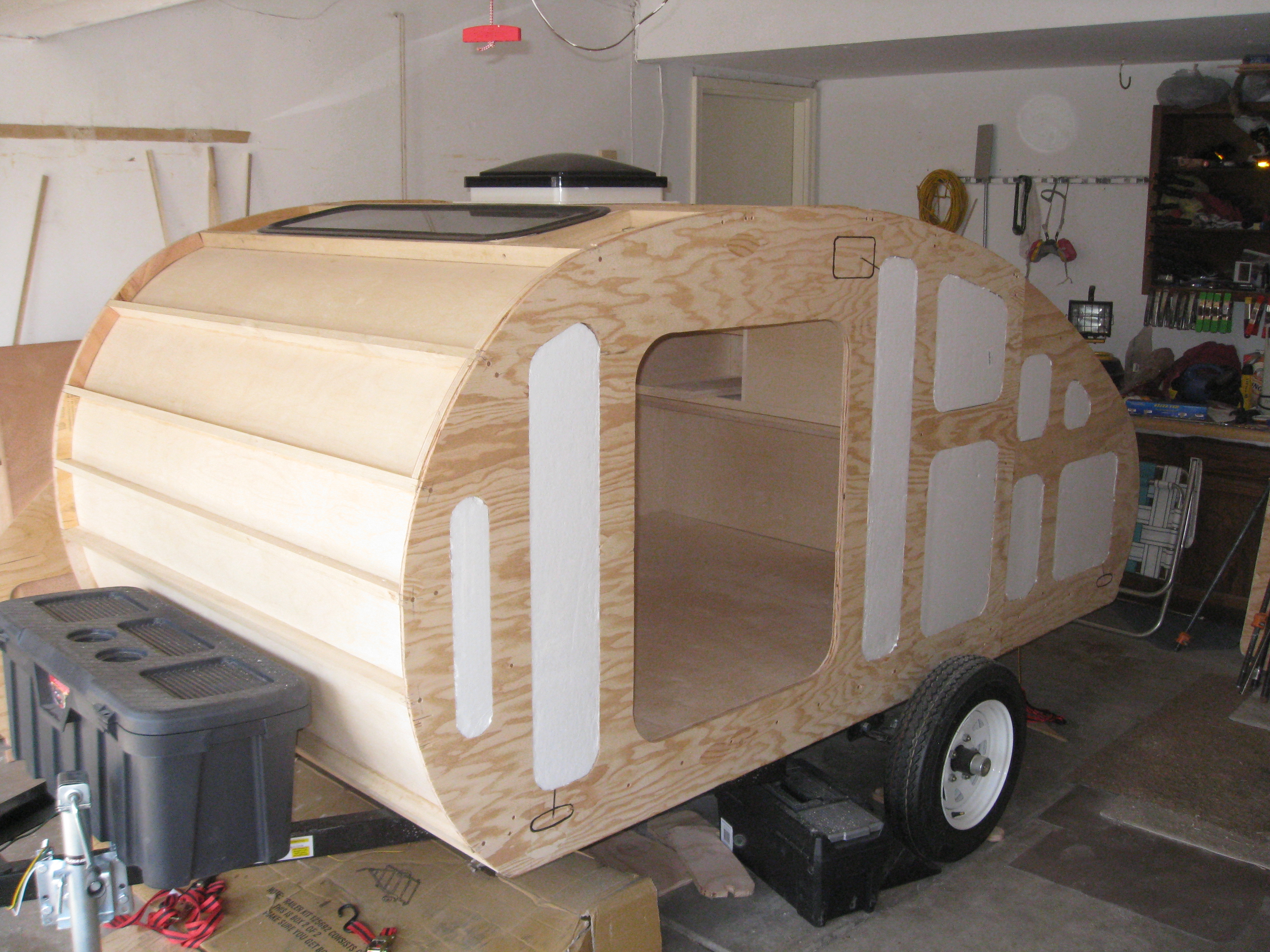

Using a belt sander I cleaned up the edges of the wall, blocking, and spars to get a crisp 90 degree angle for the outside skin later on.

IMG_5892IMG_5895IMG_5761

1 2 3 4
Share.

About Author

  • Aaron

    What was your reasoning behind choosing poplar 4/4’s instead of using another material such as 3/4″ plywood?

    • ryan_teardropbuilder

      The main reason is stability. Plywood is made up of many laminated sheets, and when you cut smaller strips it bends very easily in the direction of those laminations. Poplar is ridged in both dimentions and is best used for framing. In reality any solid wood such as oak could be used but poplar is cheap and light.
