Installing Components and Final Details

20

With the trailer nearing completion it was time to permanently instal the lights and accessories and reattach the fenders.

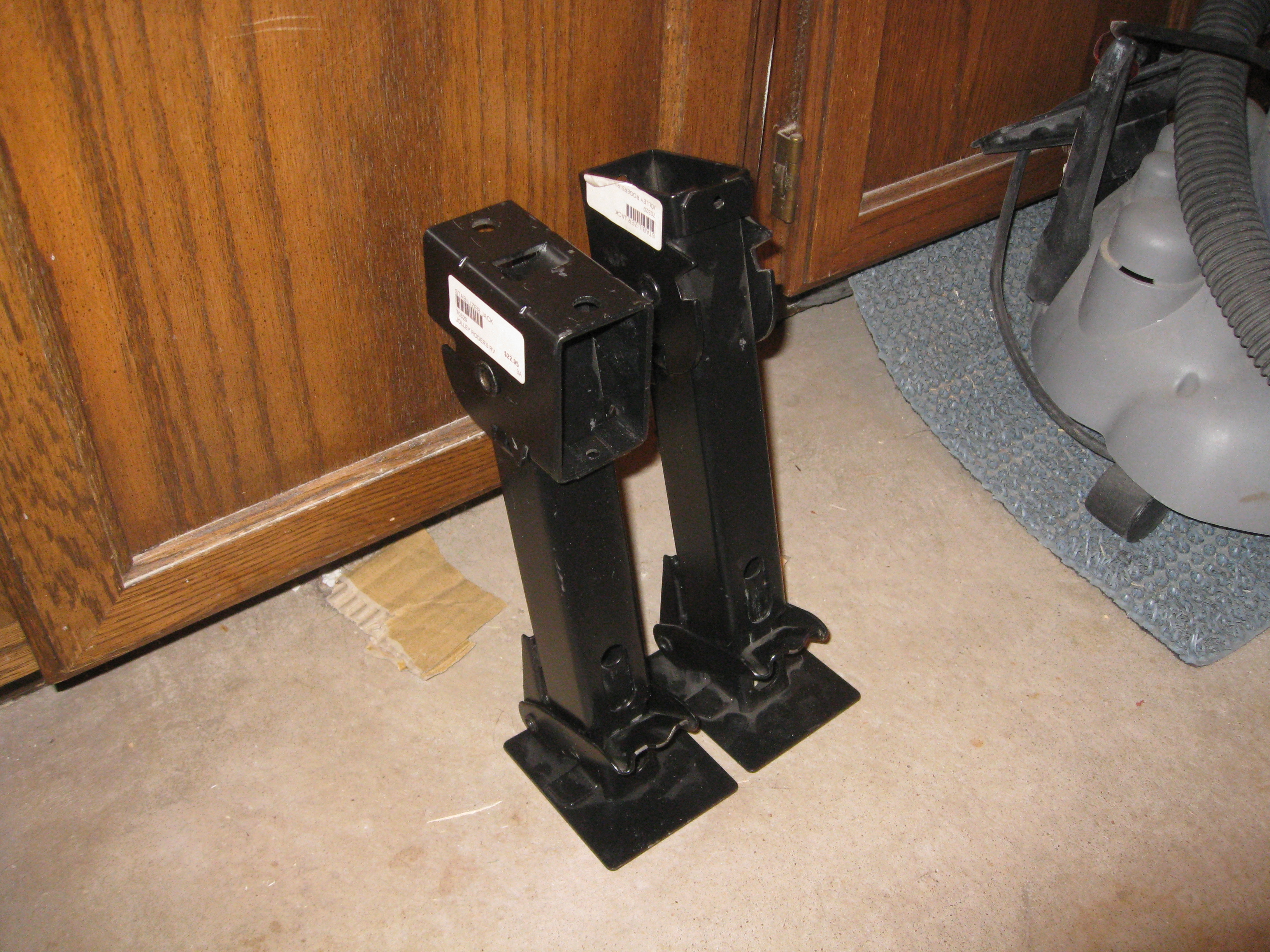

First of all the stabilizer jacks were installed in the rear. I mounted them to existing holes in the trailer frame.

IMG_5627IMG_6157

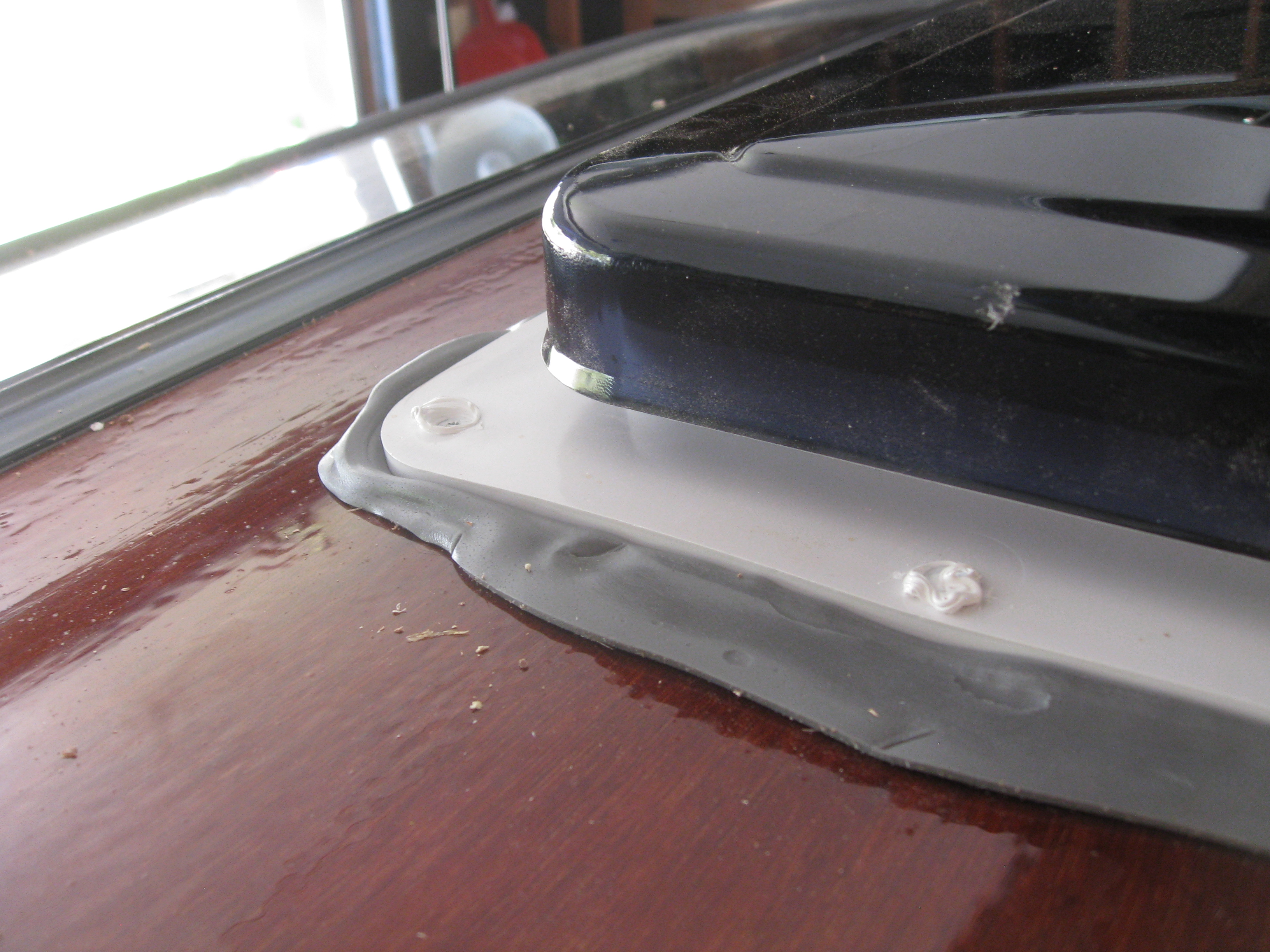

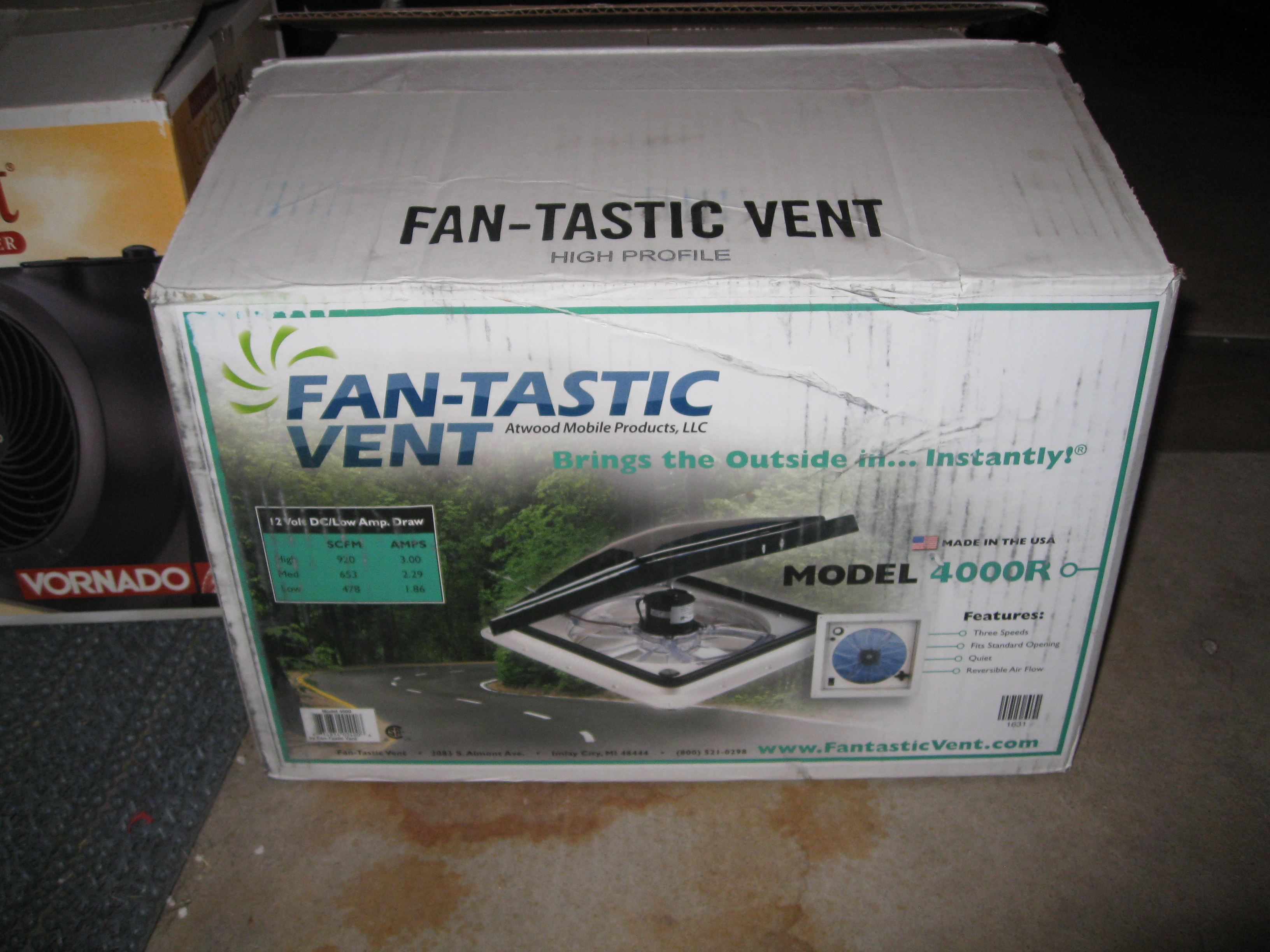

The fantastic vent was installed with butyl tape to seal it form the elements. I then filed the screw holes with white  3M 4000 and tightened it down a bit but not all the way so the butyl tape would get seated correctly. After an hour I came back and fully tightened the screws.

IMG_5095IMG_6618IMG_6620IMG_6625

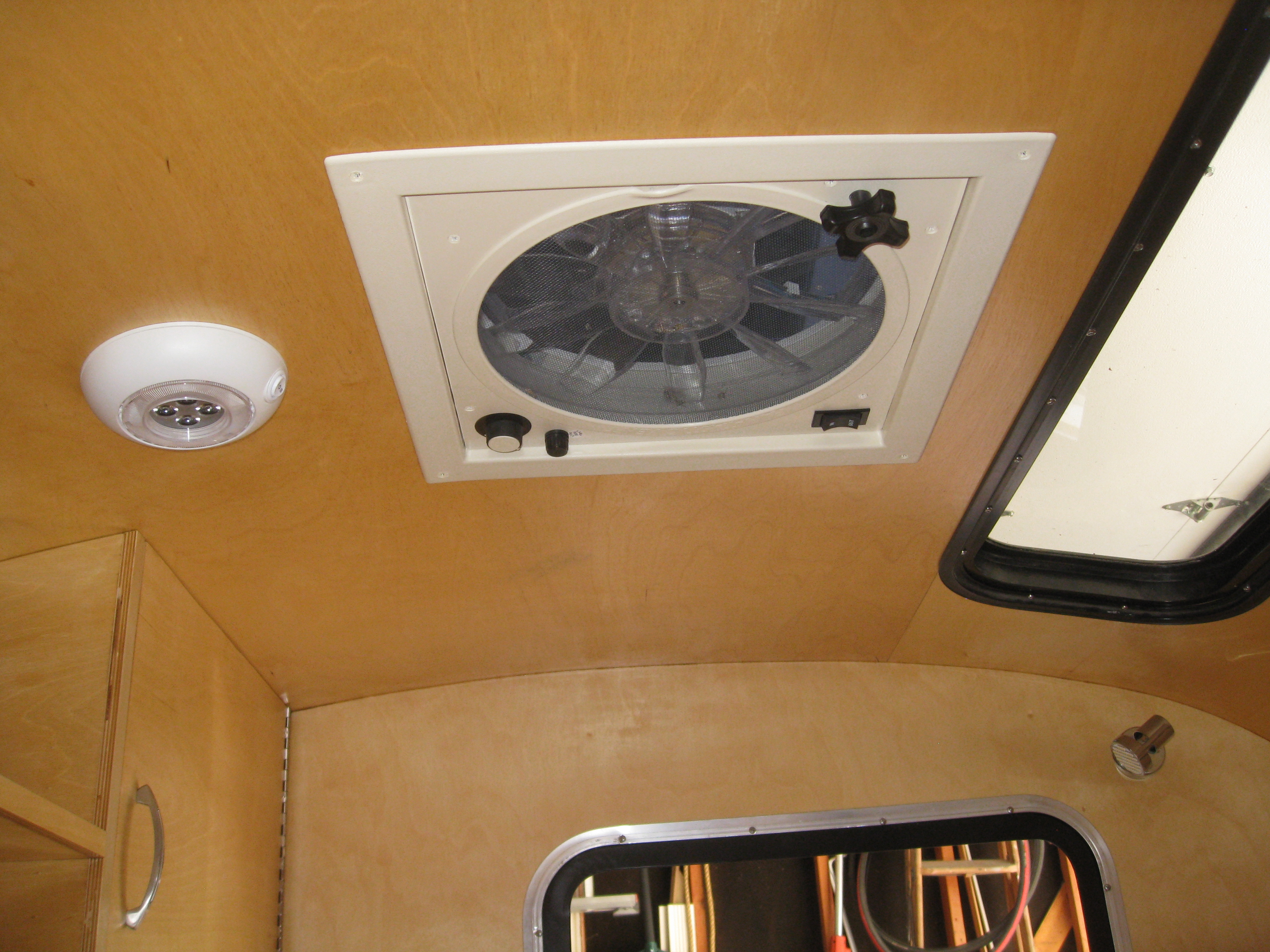

The fan after the trim ring was installed.

IMG_6631

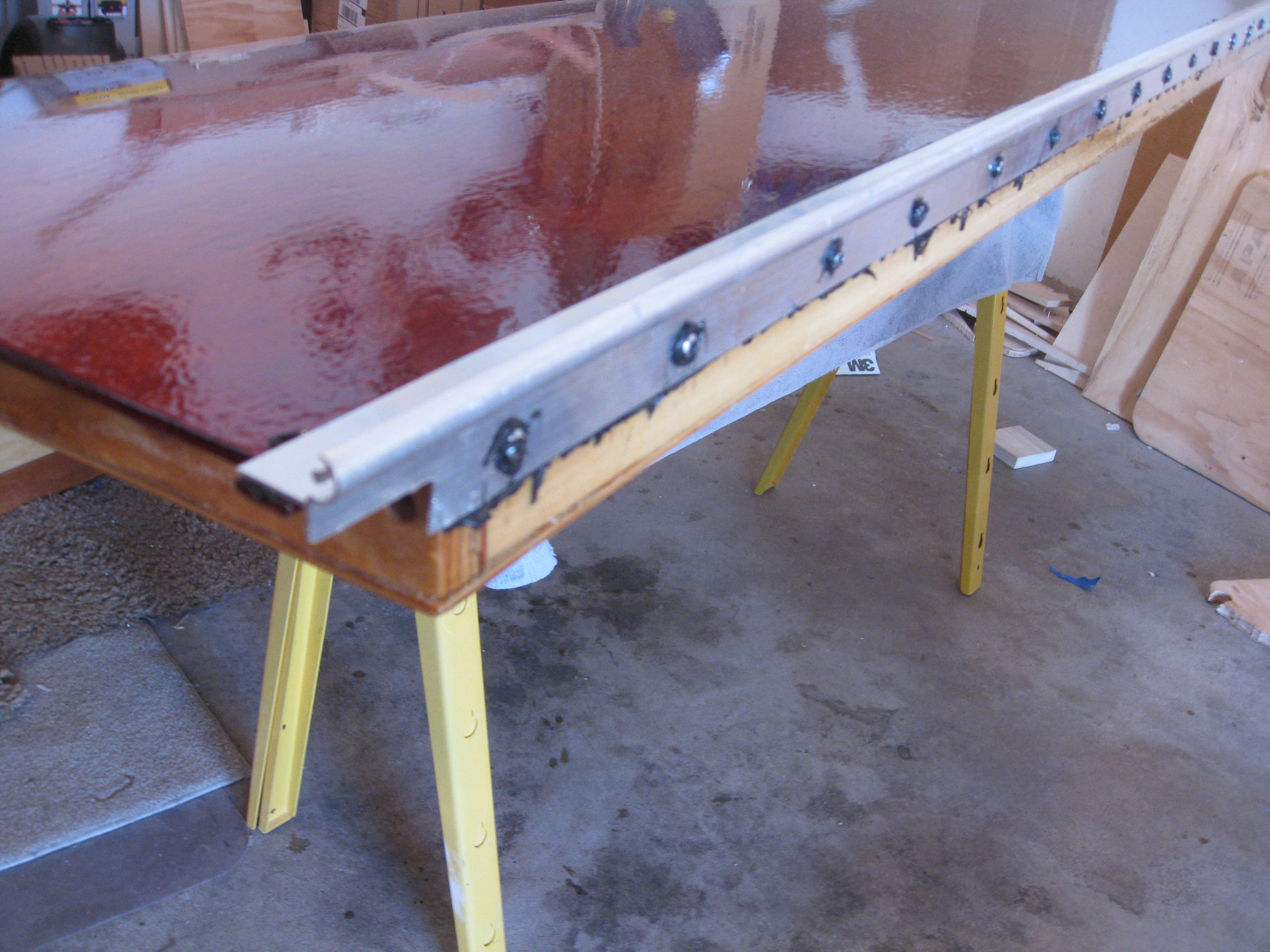

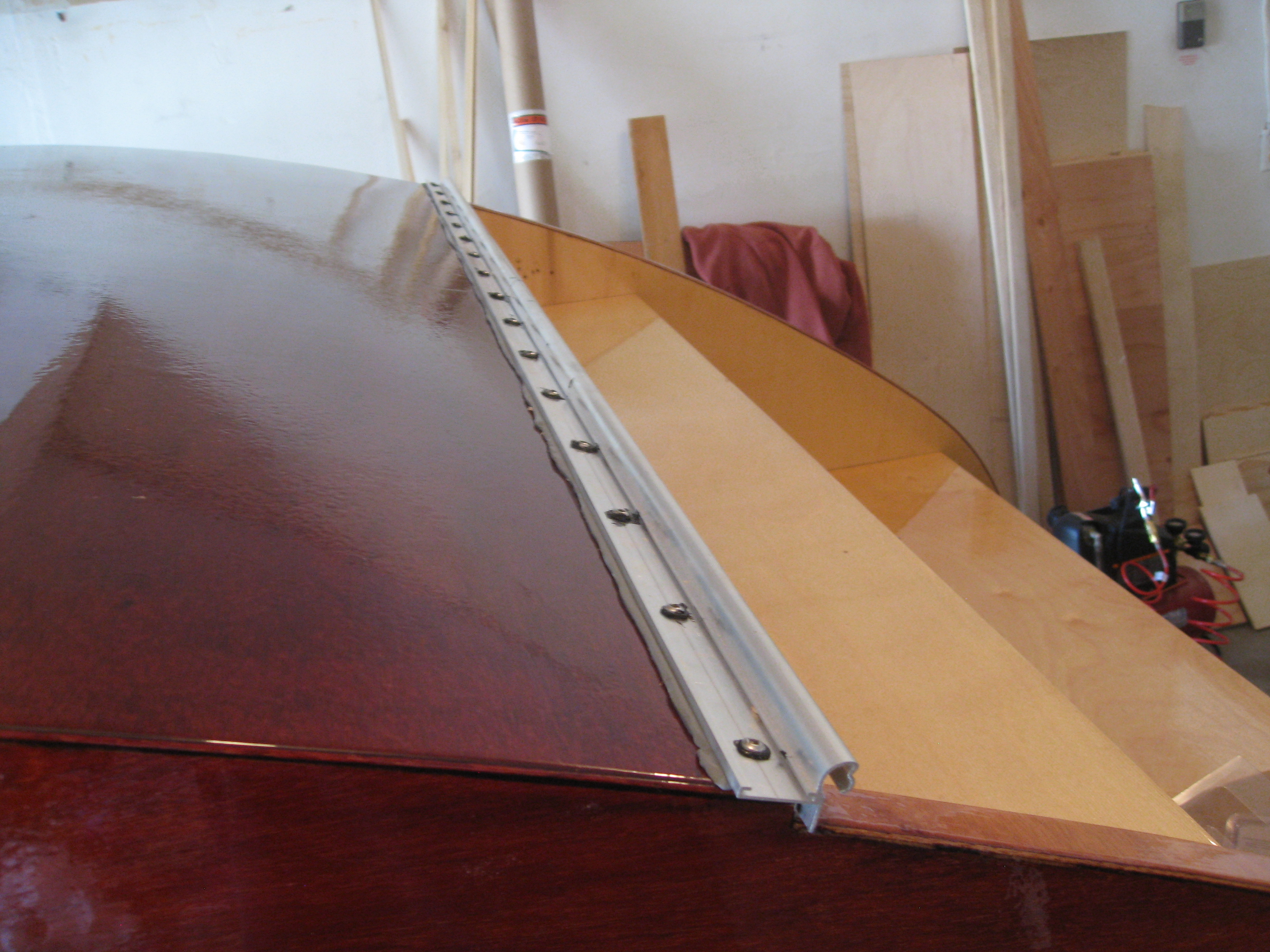

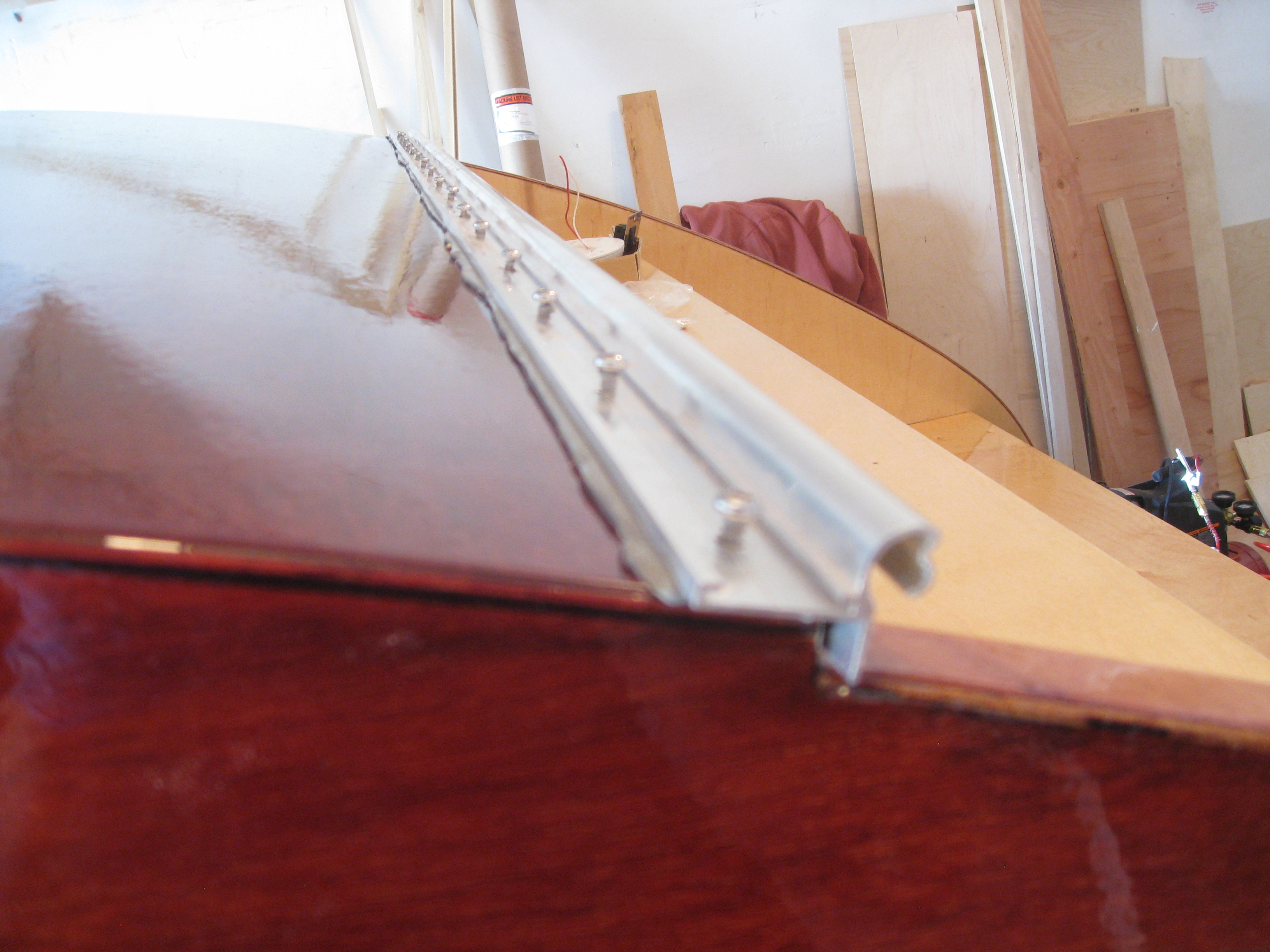

I attached the hatch hurricane hinge with butyl tape under the top flange on the body side and black 3M 4000 UV under the flanges on the hatch sides. I then sealed the screw heads with more 3M 4000. The screws were spaced 6″ apart to even the pressure distribution. Between the weight of the hatch and the 130# gas struts I had to make sure the hatch was secured correctly.

IMG_6570IMG_6571 IMG_6574IMG_6579

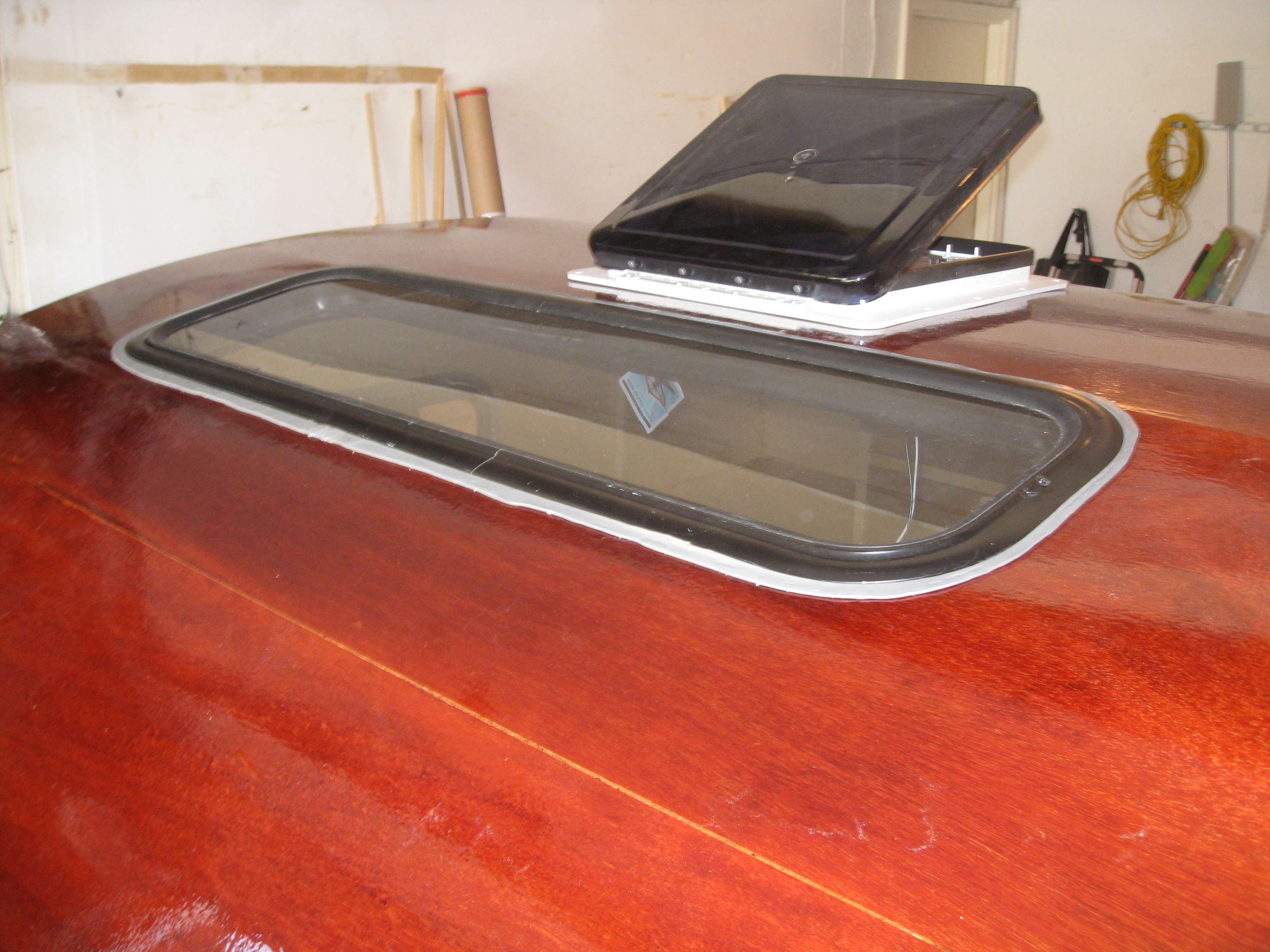

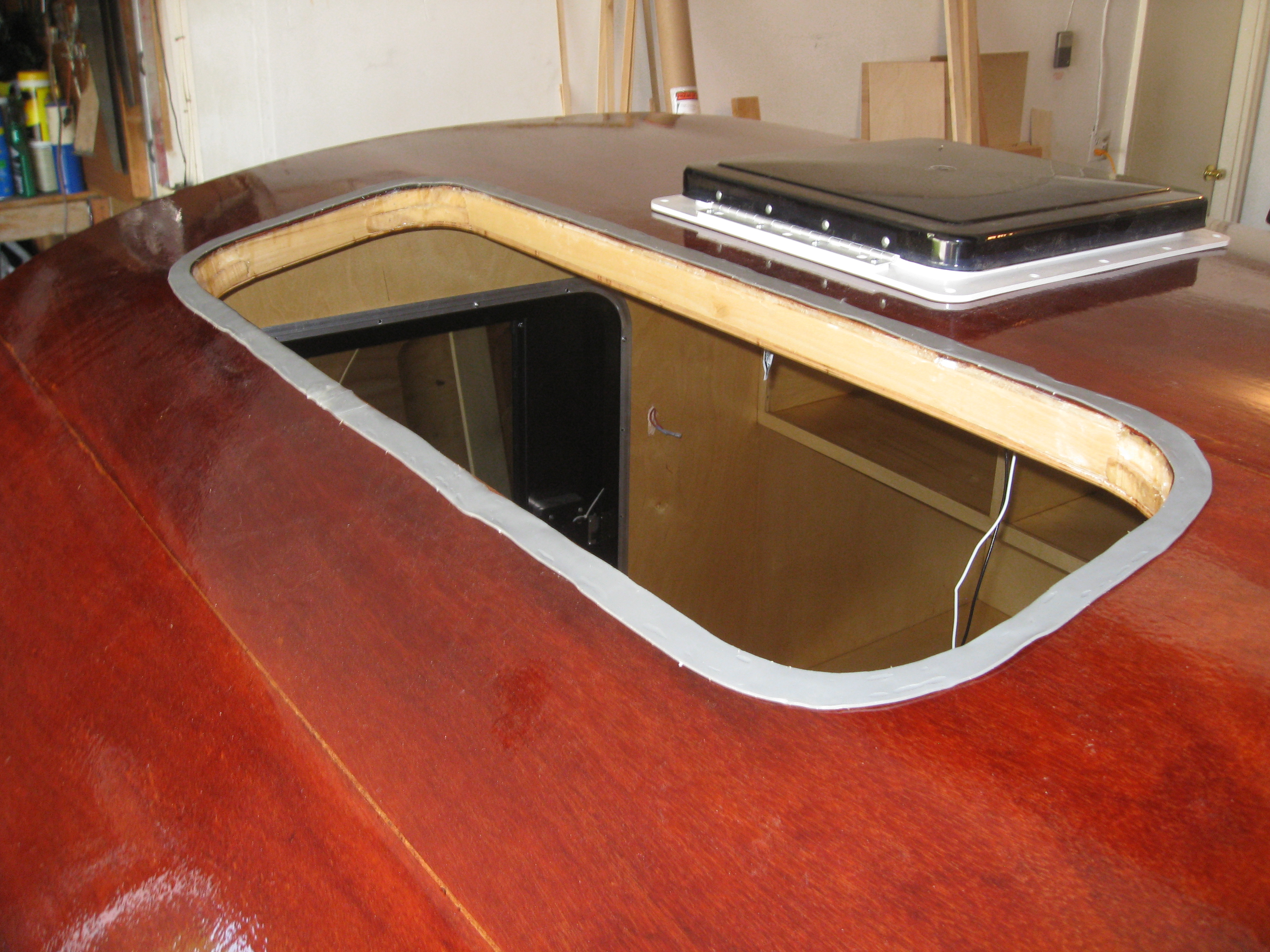

Similar to how the fan was installed I went about installing the skylight window. Butyl tape was used to seal it from leaks.

IMG_6576IMG_6577IMG_6583

After the inside trim ring was installed I scraped off the excess butyl tape and ran a bead of black 3M 4000 around the edge on the outside.

IMG_6628IMG_6641

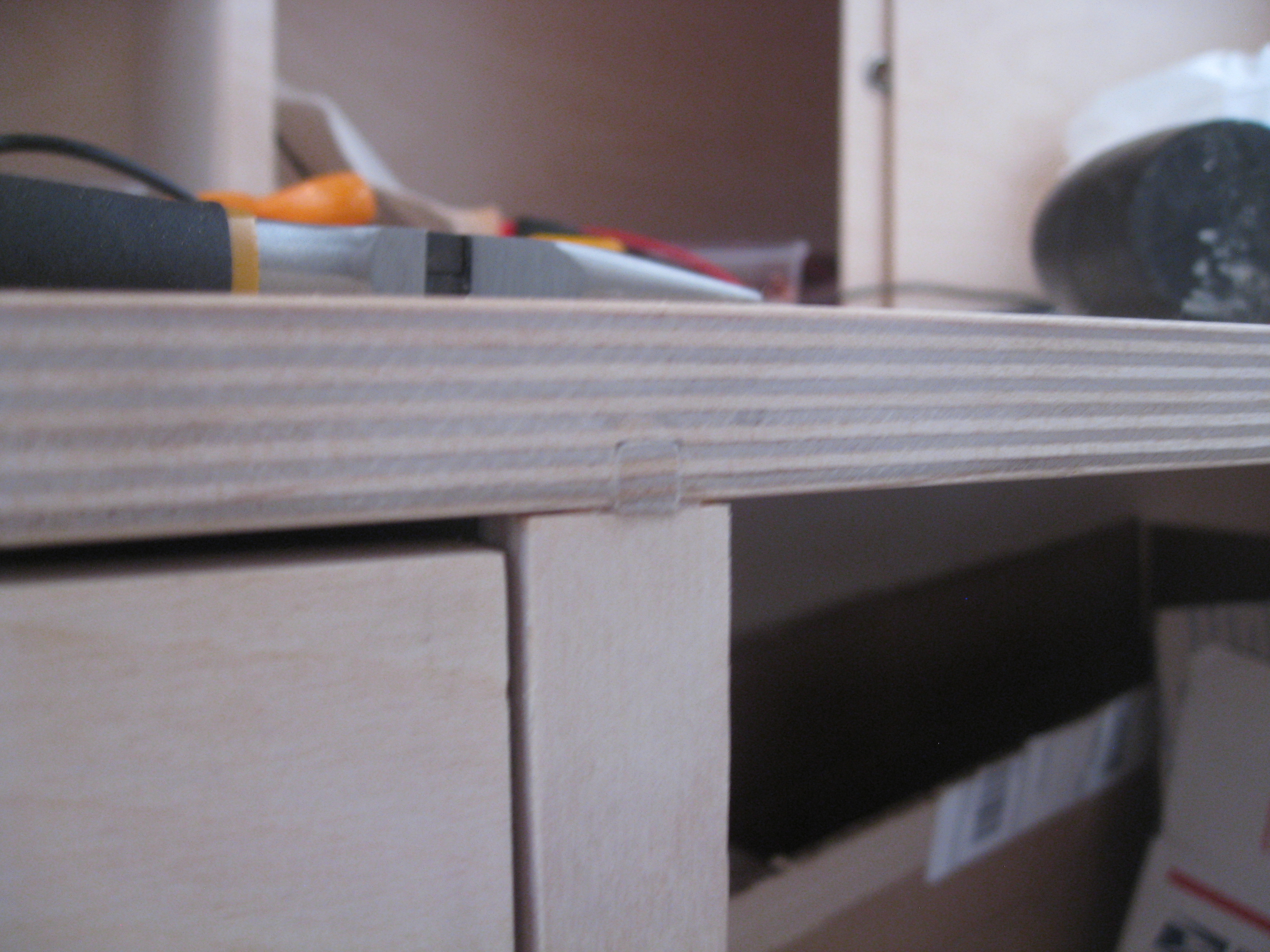

To hide a few of my exposed grooves in the cabinetry I made plugs which matched the end grain and installed them with some Titebond III wood glue.

IMG_6023IMG_6022

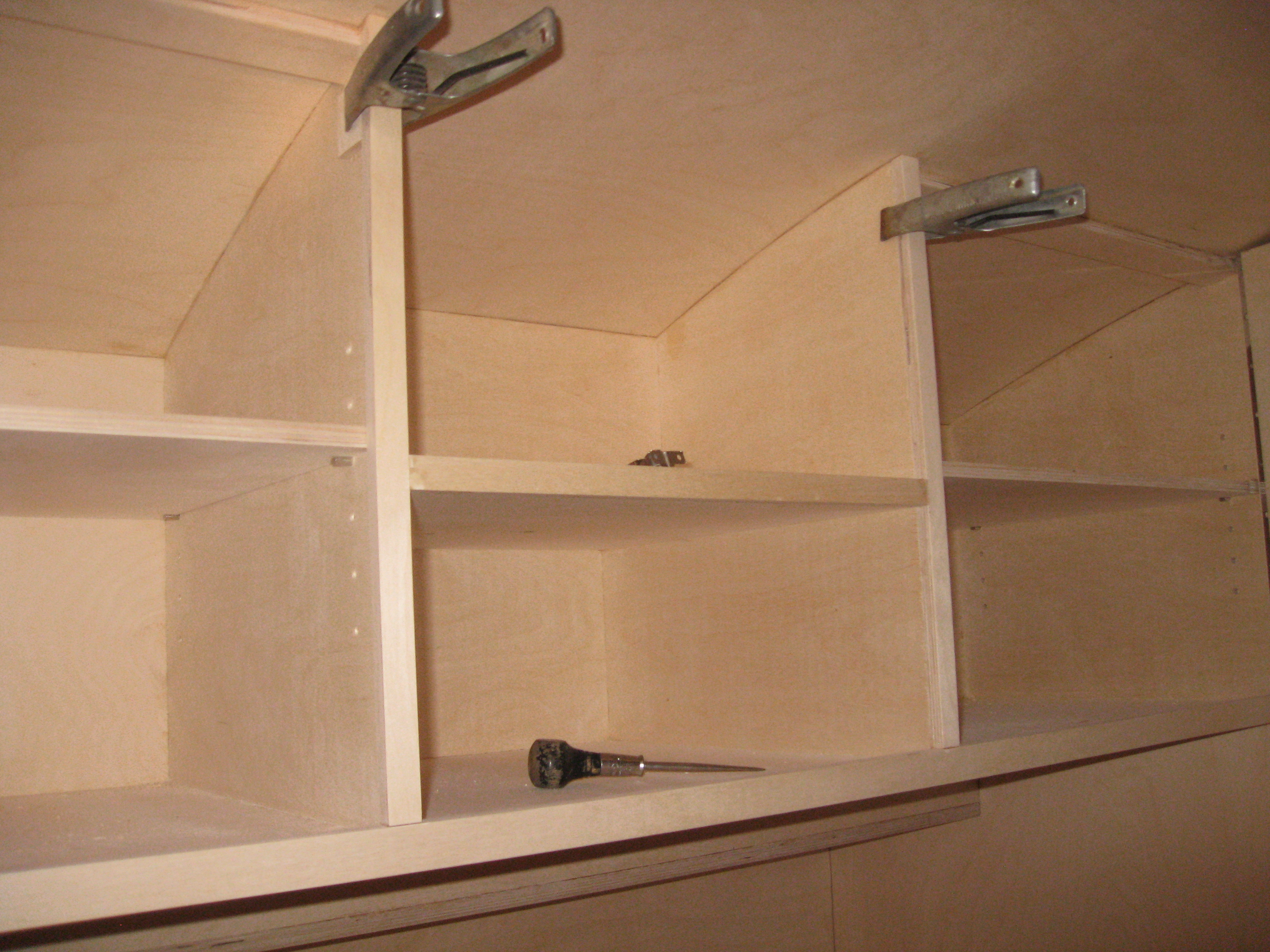

The cabinets have a 1/4″ lip around the face frames which helps keep items stored inside the cabinets from falling out when the trailer is moving. I installed spacers to mount the cabinet catches so they were flush with the face frames.

IMG_5819IMG_5818

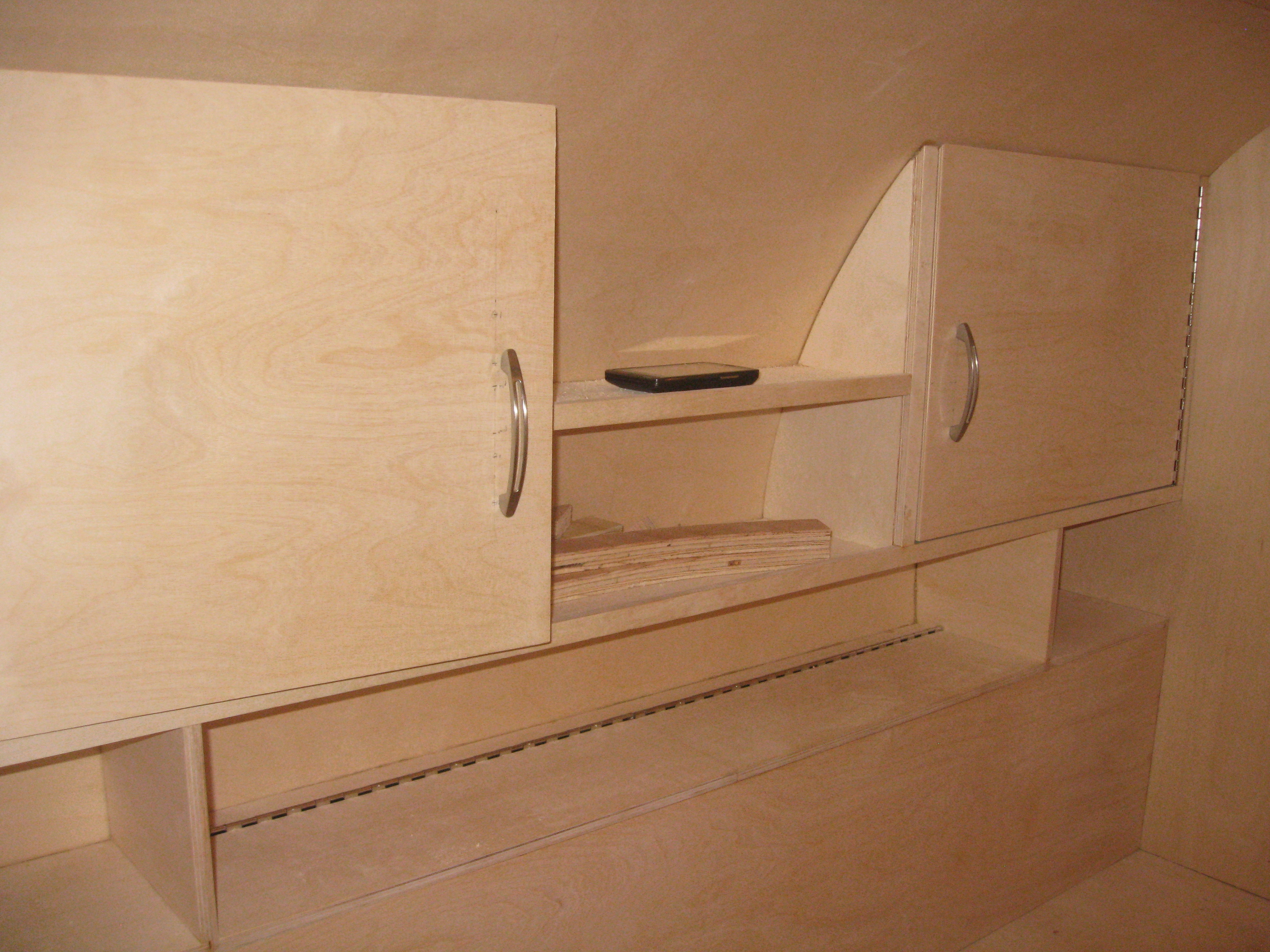

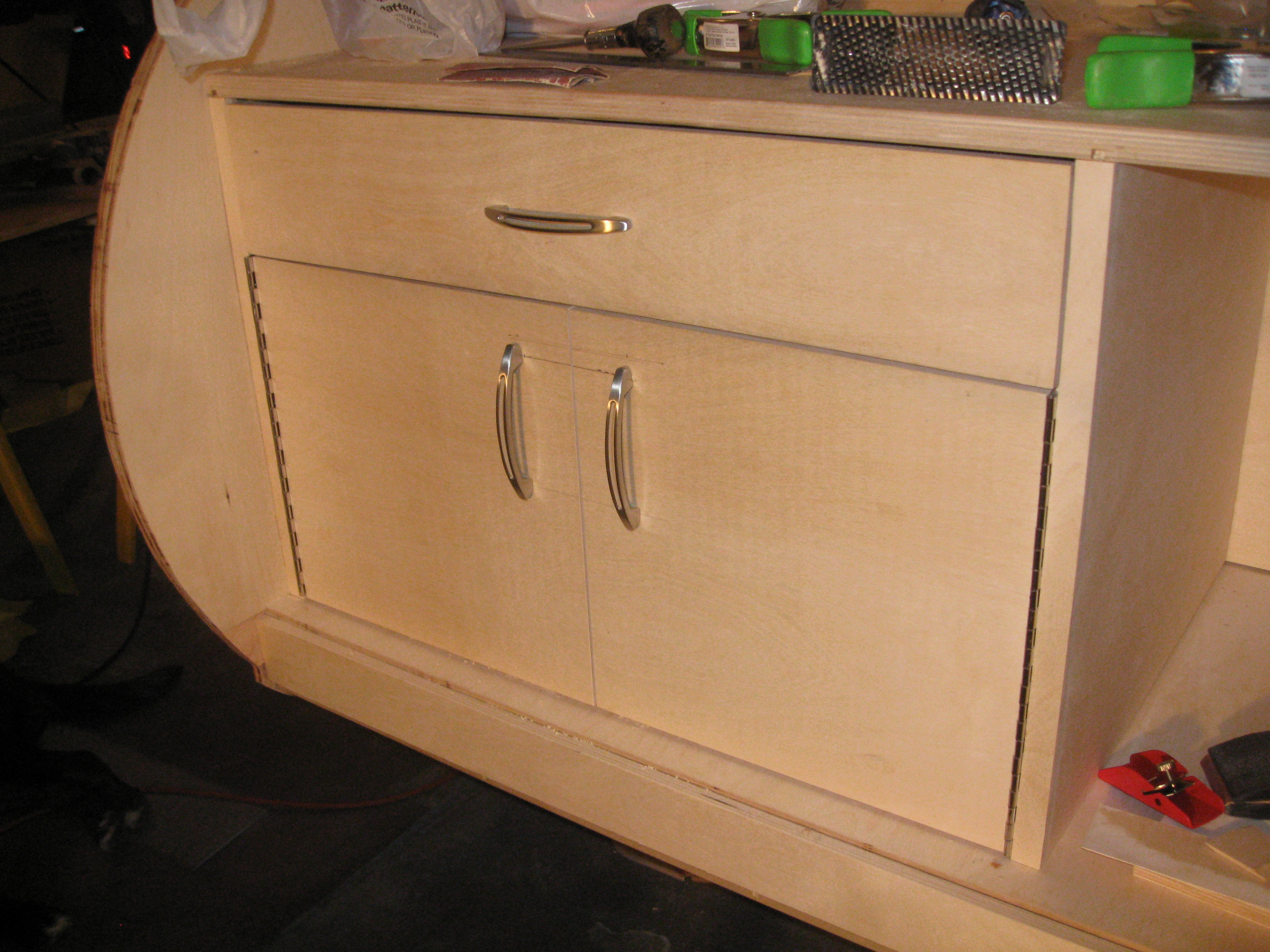

I installed all the brushed nickel cabinet pulls in all the drawers and cabinets.

IMG_5813IMG_5815

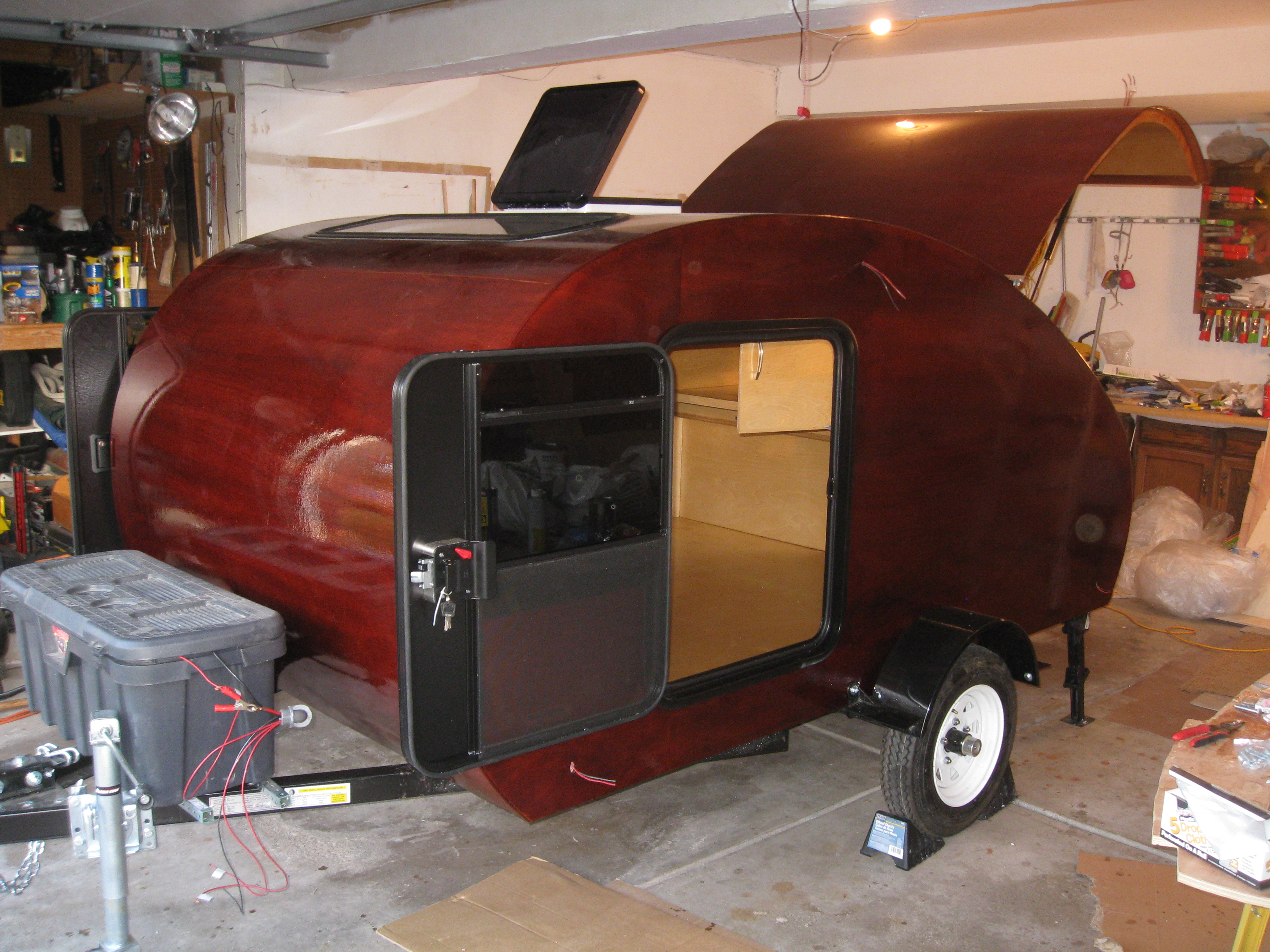

Next up was to install the doors. They were fairly easy and only required installing the inside trim ring. The inside of the door has weather stripping and when compressed by the trim ring created a nice weather proof seal with the trailer.

IMG_6564IMG_6584

Next up were the lights. I used waterproof heat shrink butt connectors which I had to crimp and will provide a good connection.

IMG_6607IMG_6614IMG_6612

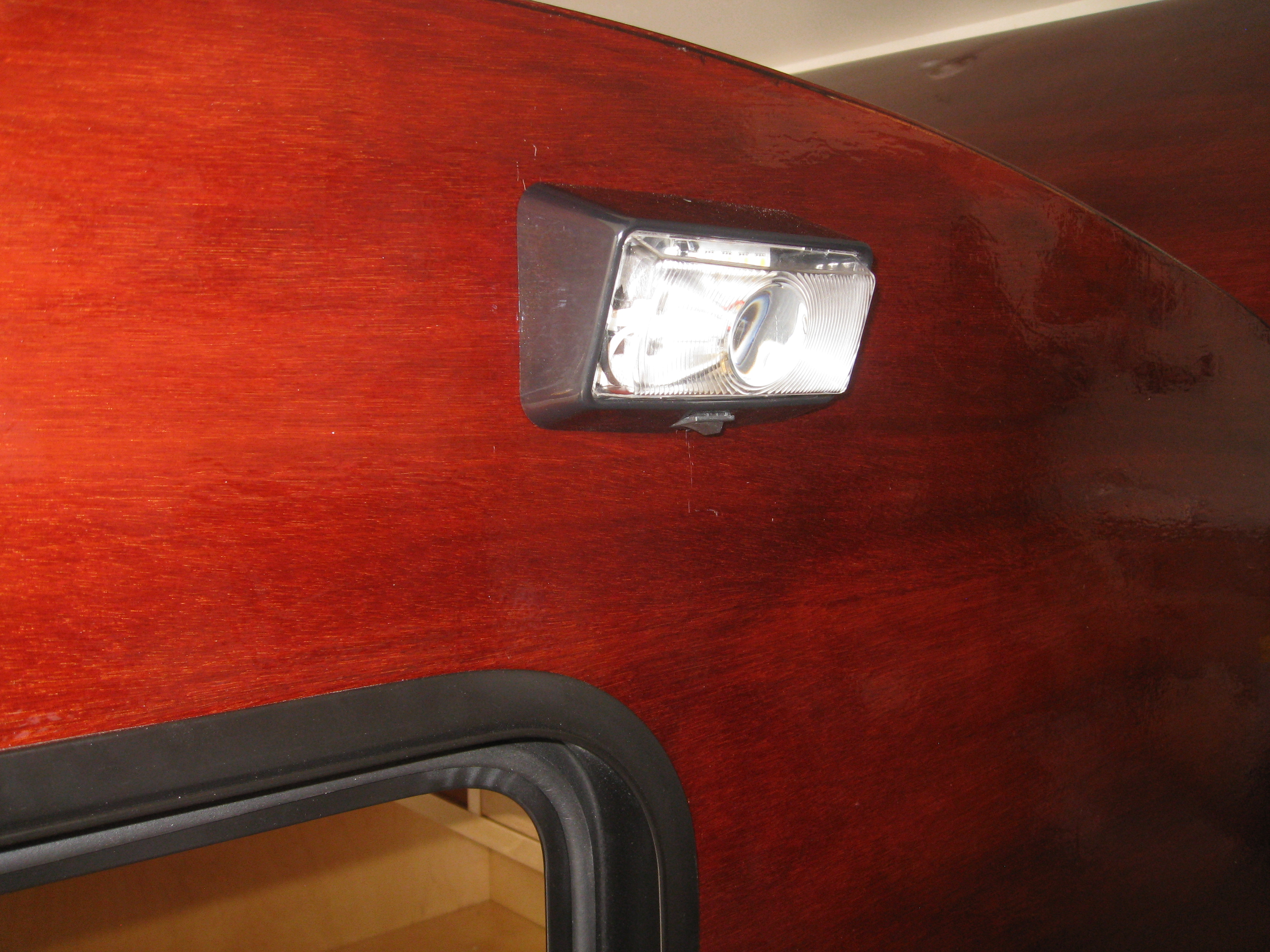

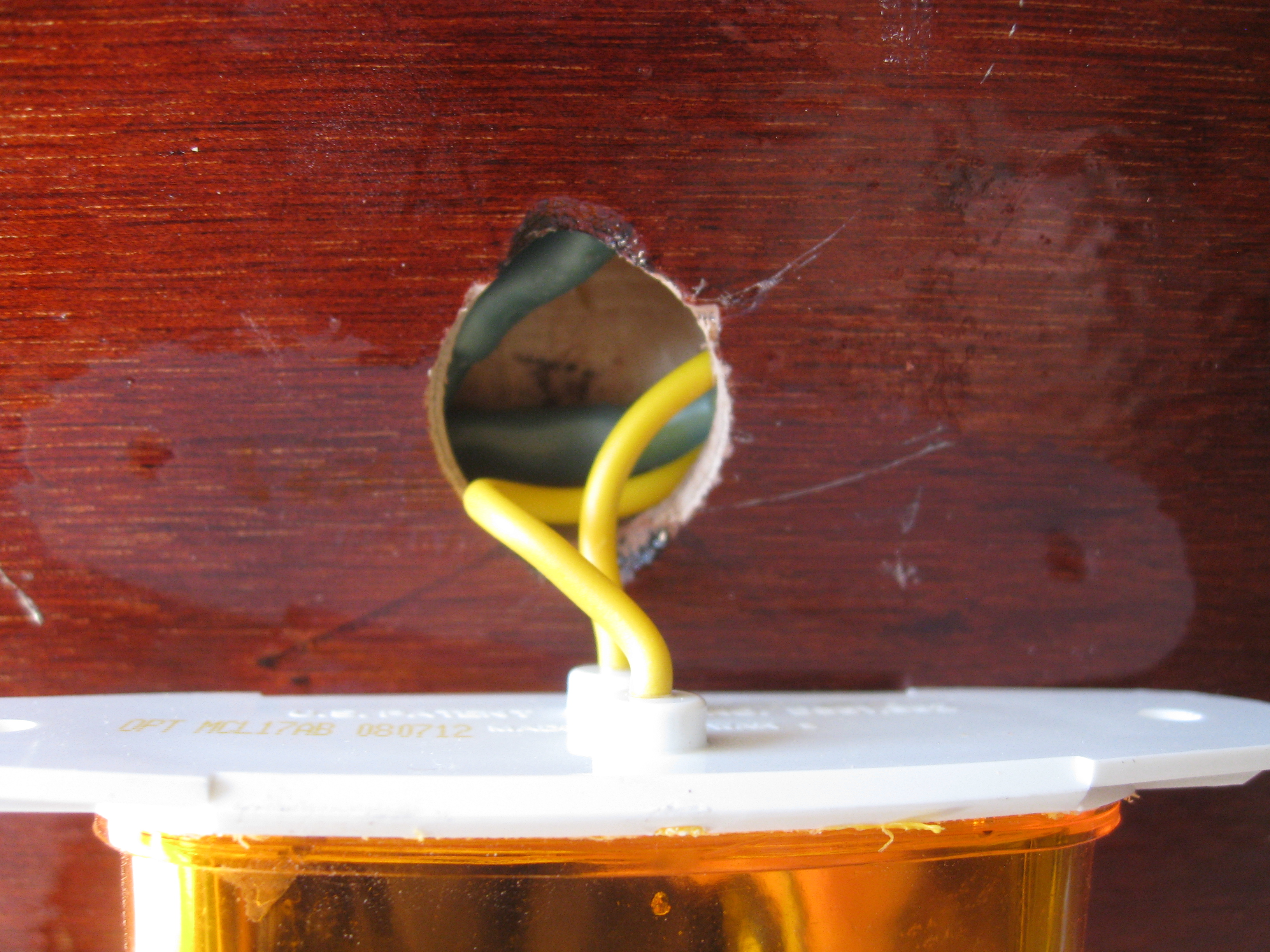

The wires were hidden inside a small wall cavity behind the fixtures or behind the fixtures themselves i there was room. All butt splices will be accessible down the road if I need to get to them.

IMG_6636IMG_6629IMG_6633

The electrical compartment almost complete. I had to connect the bullet connectors from the galley hatch umbilical and then push them up into the hidden splice cavity above the compartment.

IMG_6604

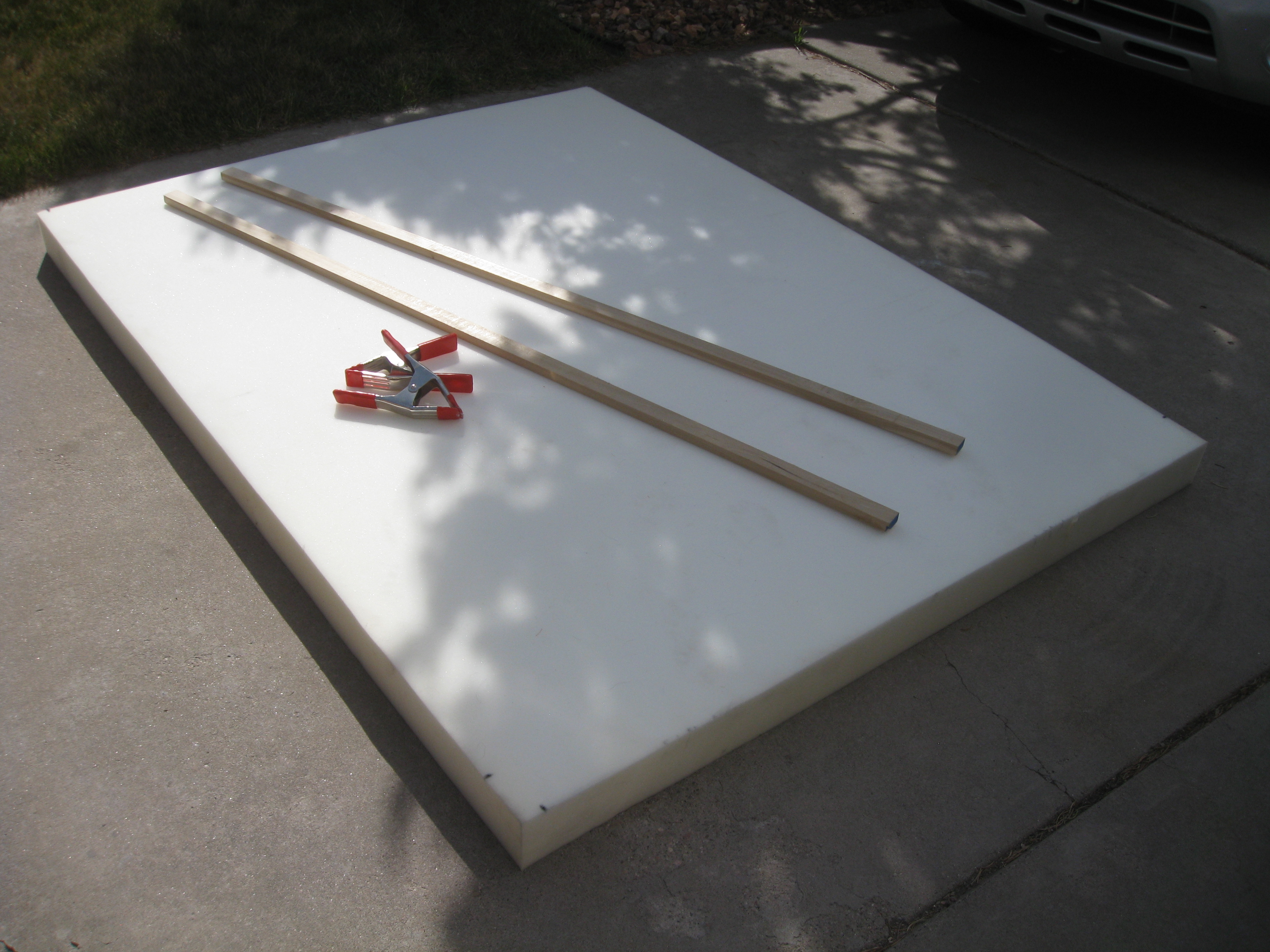

I ordered a queen size HD foam mattress online. It was a bit too large so using a straight edge and an electrical carving knife I trimmed off a couple inches on end and one off the sides. When finished the mattress fit snugly inside the cabin.

IMG_6644

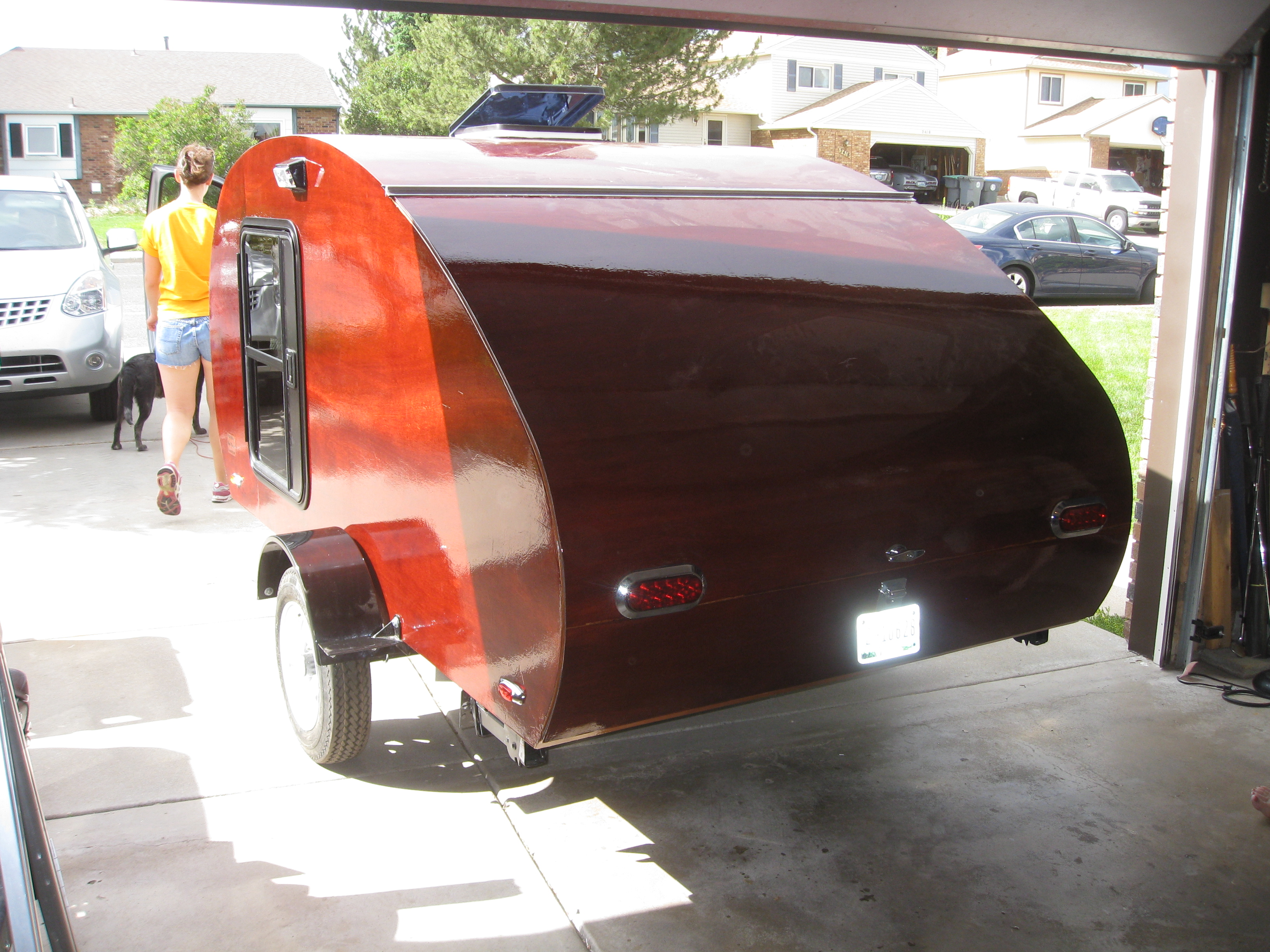

THe last thing to do was attach the license plate and we are good to go!

IMG_6642

1 2
Share.

About Author

  • Richard Cooke

    I am having trouble finding a skylight like the one you installed. Can you tell me what vendor you sourced it from?
    Thanks,

    • ryan_teardropbuilder

      I got it on ebay from a seller called “customrvwindows”. They have a ton of options and their selection is always changing. Here is a link to their web store.

      http://www.auctiva.com/stores/viewstore2.aspx?id=1640272&styleid=12

      • ukewarrior .

        Excellent ! I was hoping that was the case. Now I can start trolling ebay for a surplus window.

  • ukewarrior .

    Is the skylight a special window or just a non-opening RV window? Is sure looks like a standard RV window.

    • ryan_teardropbuilder

      It is a picture window originally intended for an RV, not sure what type exactly as it was a surplus part of some sort. It was intended to be installed lengthwise vertically as it has weep holes on one end that I had to seal.

      The key thing to look for is that it comes with an included trim ring, and that the trim ring matches the thickness of wall you are installing it into.

  • Preston Broussard

    I must say Ryan, this is spectacularly beautiful! Stumbled across this on reddit and just went through every picture of the build. So amazing and inspiring. What was your skill level of carpentry going into this may I ask?

    • ryan_teardropbuilder

      Thank you very much! My skill level was fairly low at the very beginning. My buddy Ed who gave me access to his woodworking shop thought I was a bit crazy for tackling such a large project. At one point he suggested that I start out with an end table or something instead. Undeterred I continued on, but it was only because of my extensive planning beforehand and Ed’s woodworking knowledge that I succeeded.

  • Bob Mesenbrink

    Ryan, Thank you so much for providing such detailed plans. Your construction skills have set the bar high! I’ve never used a teardrop, but see that some galleys have a pull-out stove, water tanks, and even a sink. I’m curious how the galley in your design works without the built-ins. Do you keep a stove and water tank in the cabinets or vehicle, and then just set them up separately? Curious about your thoughts on both design and use of galley, with respect to built-ins.Thanks.

    • ryan_teardropbuilder

      At first the extras like a sink, refrigerator, or a built in stove sounded like a great idea, but looking a bit more closely and reading about others who have them we decided they would be more hassle than they are worth. The galley with its limited space we wanted to maximize what we could do with it. Water tanks, sinks, pipes, really get in the way while providing limited functionality, not to mention cleaning.

      In our setup we have a space for a cooler or water tank in the lower right section under the counter. It was built to the specific size of a cooler so it fits perfectly. In the cabinets there is a shelf for our slim Coleman stove which we pull out and place on a side table. I am happy that we did this since grease tends to splatter and if it were in the back of the galley surrounded by wood you could imagine the problems that would cause. On this table we sometimes put a container of water to wash pots or hands that drains onto the ground. If this were in a tiny sink you wouldn’t be able to do this easily.

      In the end we went with functionality vs style and ultimately what works for us, but everyone uses their teardrops differently and may disagree. There is no one right way, and that’s the great thing about these custom teardrops!

      • Bob Mesenbrink

        Thanks for the reply, Ryan. There is a lot to be said for simplicity. With limited space, I can now see that it would be easier to pull out the stove and tub and set up a table, and keep more cabinet space for pots and pans and pantry items.

        I’ve started my build. Mostly just gathering materials at this point. But trailer arrives here in Denver next week…

  • J Lind

    Beautiful work! How is the trailer holding up? Anything you’d do differently?

    • 3 camping seasions and 6,000 miles later and not one problem so far! The only thin I would do differently would be to make the hatch a bit lighter, the struts don’t work 100% on cold mornings.

  • Eddie N Amber Fulton

    Where did you find the little camper side door?

    • I ordered the door from Frank at Vintage Technologies.

      http://teardroptrailerparts.com/Windows___Doors.html

      • What size trim rings did you order on the doors? Also, what about the stargazer window?

        Also, I assume these are WD11 on the Vintage Technologies site?

        • I ordered 1″ trim rings for the doors, they were the 36″ x 32″ ones. The window was 40″ x 12″ off ebay and I believe the trim ring was 1 1/4″ for that.

          • Thanks Ryan. Not sure if they offer that window with the 1 1/4 trim ring. Are they flexible enough to cut down to size if you order bigger than what you need?

          • Usually modifying a trim ring is pretty difficult. You should send Frank at Vintage Technologies an email and see what he can do about a custom trim ring, he was pretty good at responding to my questions. Good luck with your build!

  • M McElhaney

    Amazing camper. Where did you purchase the rear stabilizer jacks? I can’t seem to find anything like those out here. Thanks.

    • I bought them from a local RV store. They are actually very common, google “Atwood Stabilizer Jack” and you will find tons of places that sell them online.
