Building the walls


Next I cut the voids in the walls. This greatly saves on weight and allows space for the insulation and wiring.

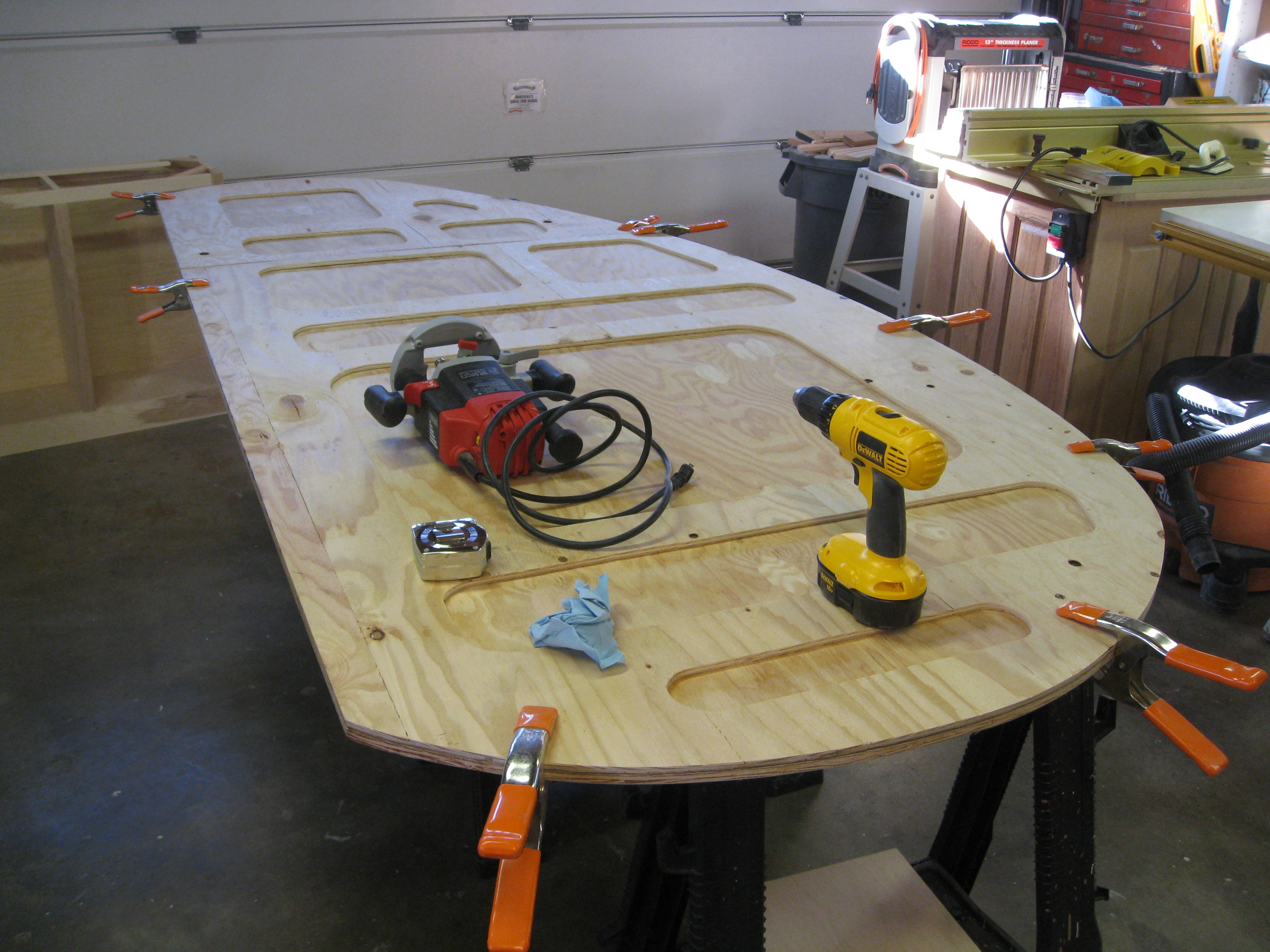

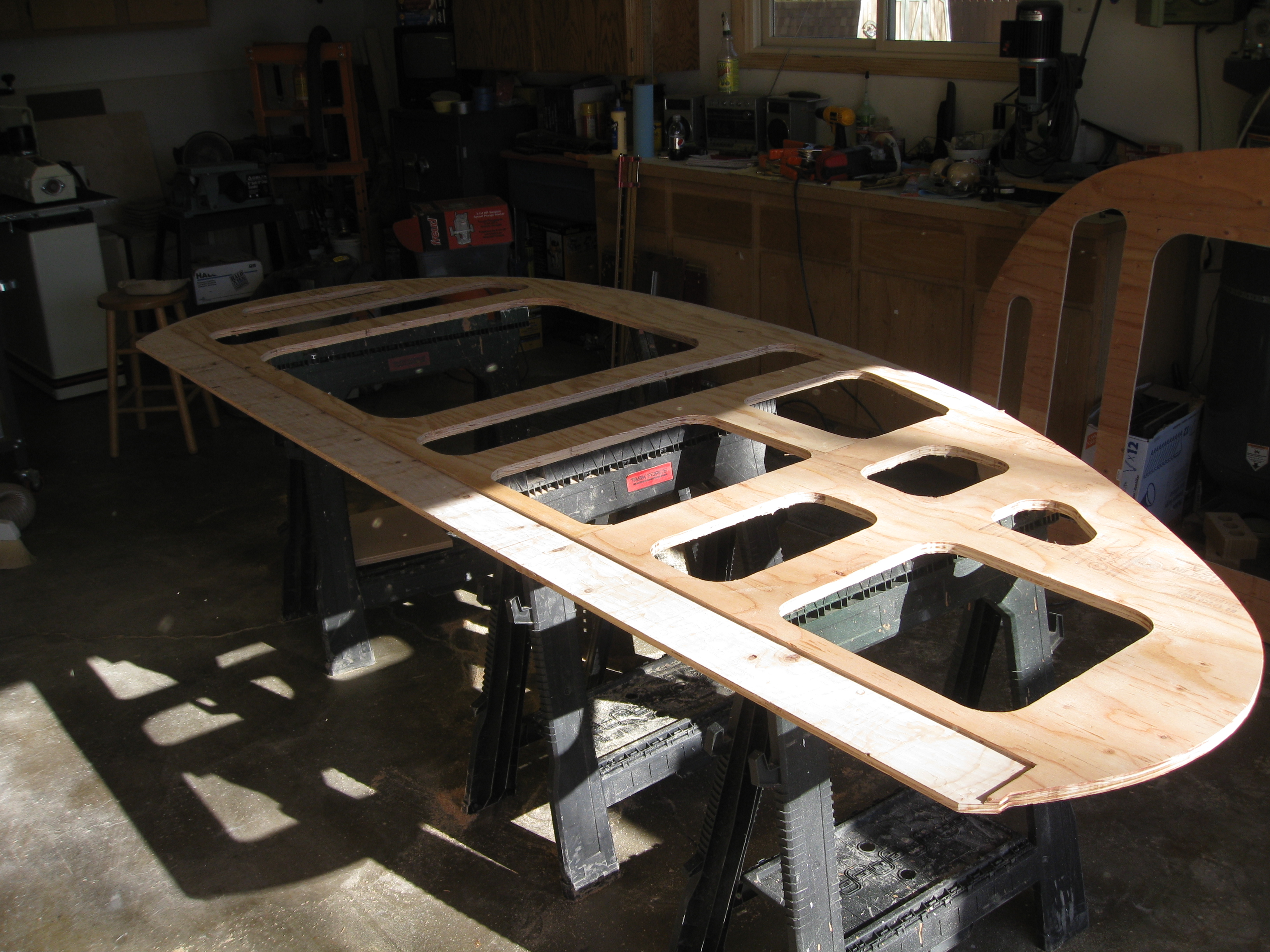

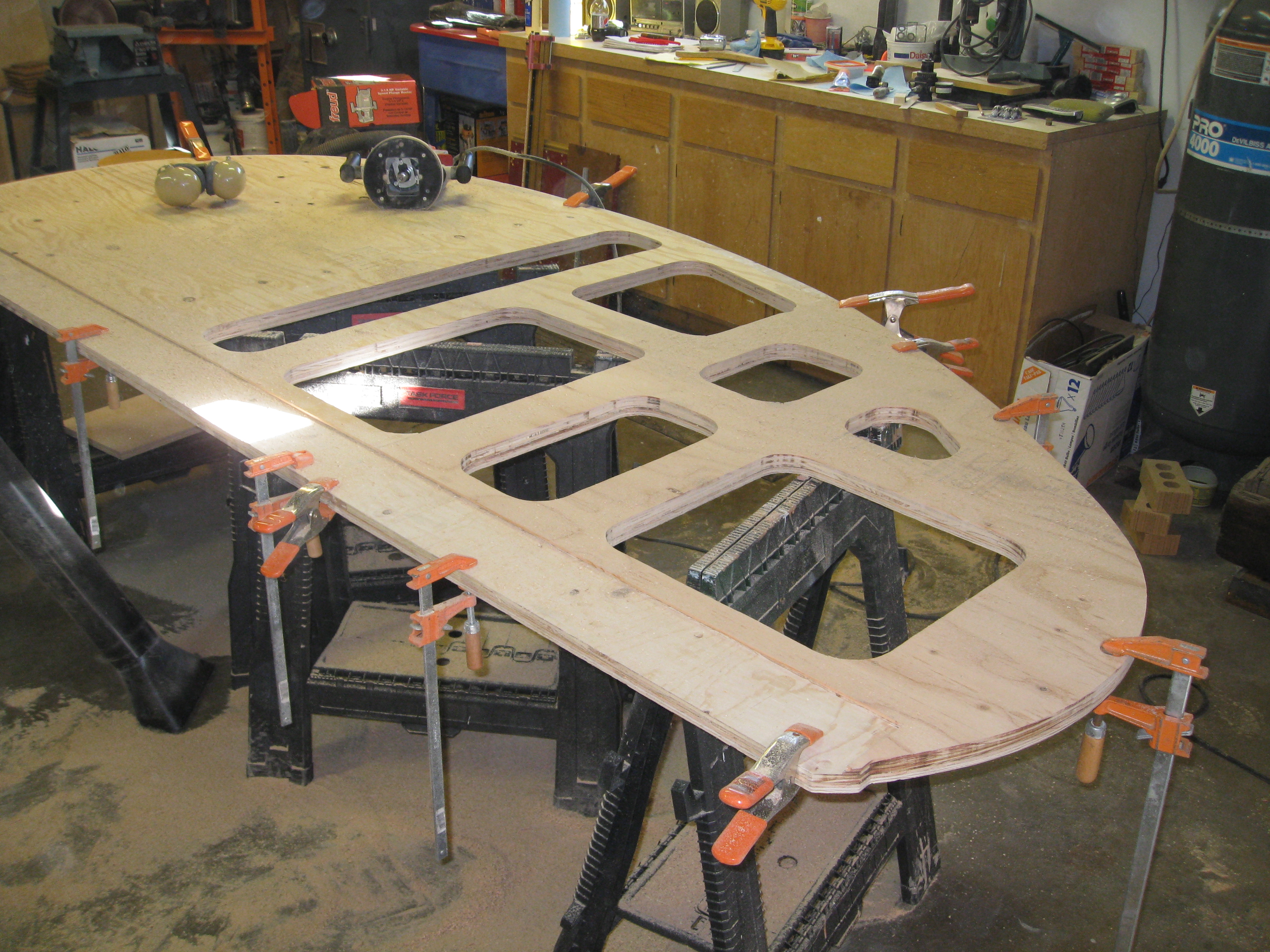

Cutting the voids out with a router. Make sure you are aware of the saw horses underneath for every cut and be sure to have something to catch the falling pieces so they don’t bonce back at you while you have the router running.

IMG_5189 IMG_5190 IMG_5191

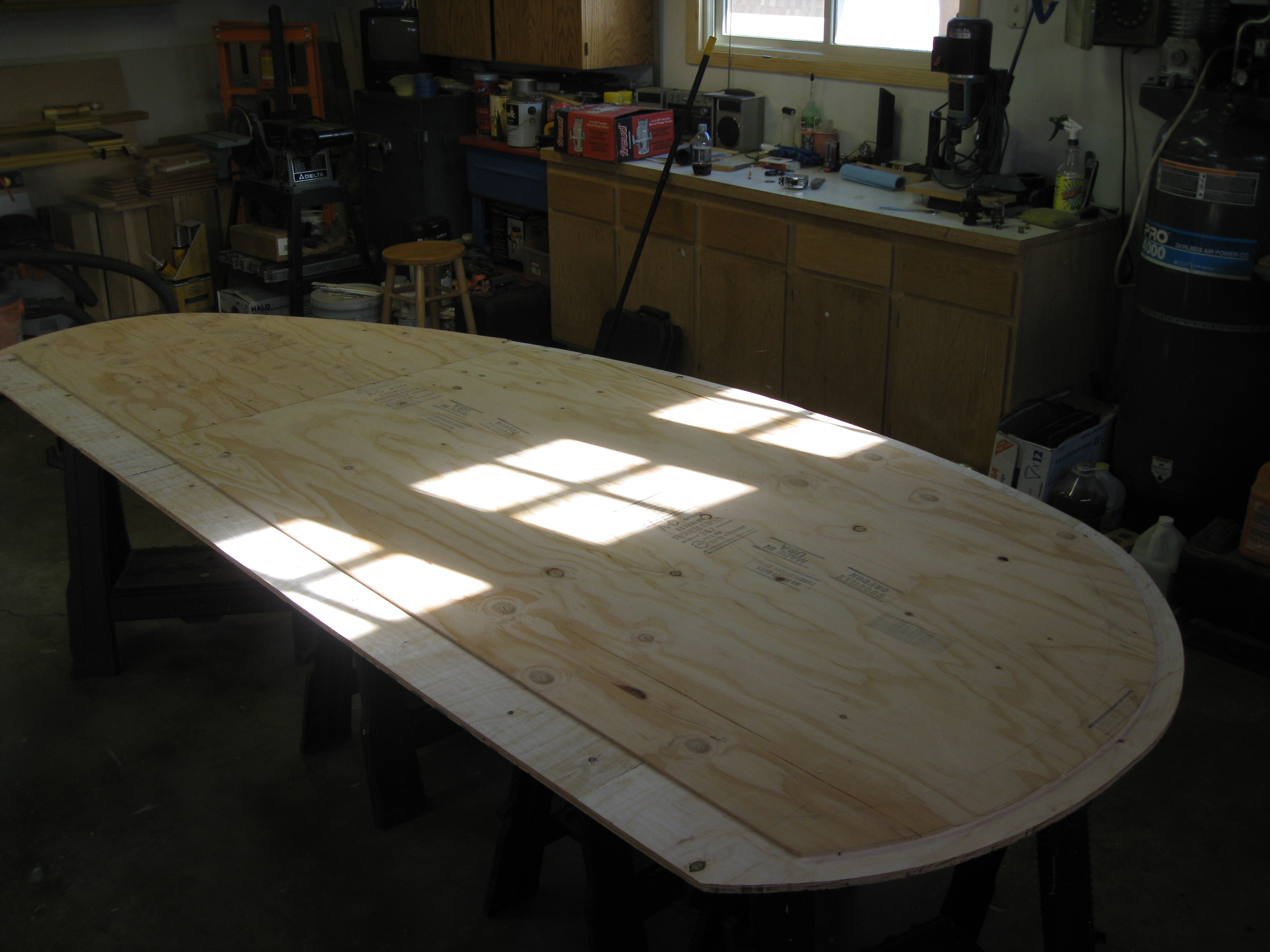

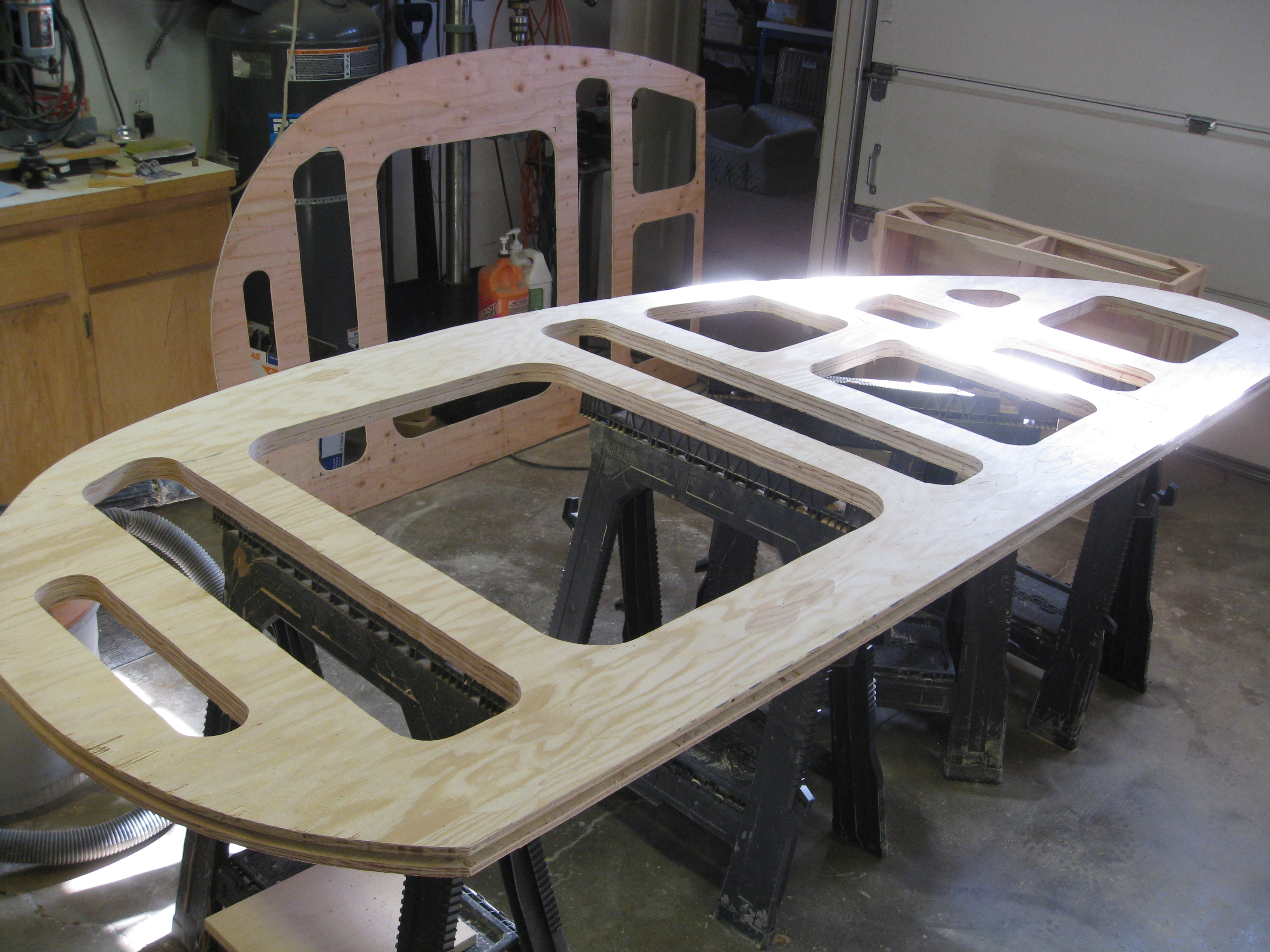

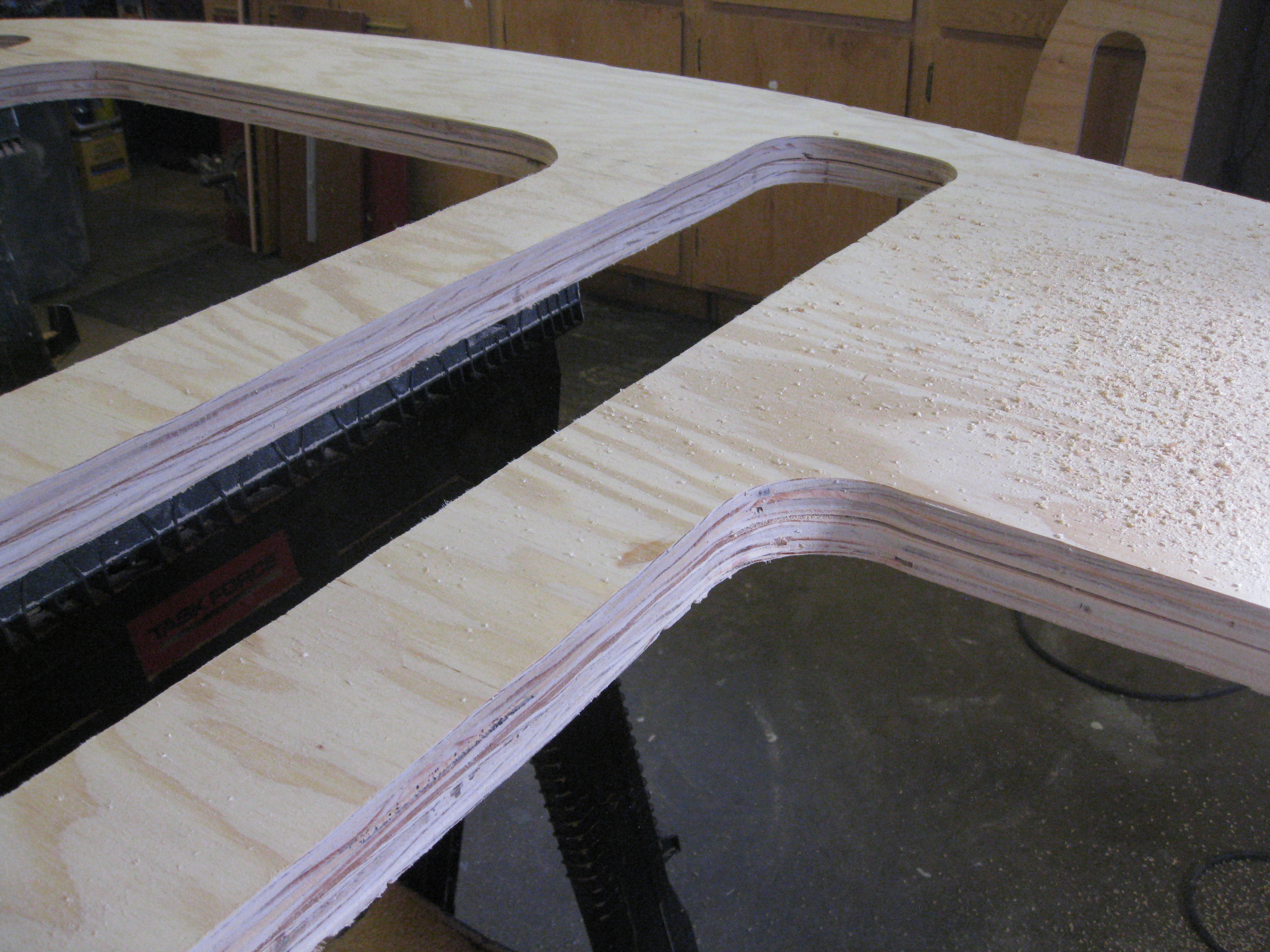

After the first wall was complete I used the first completed wall as the template so I was able to mirror them perfectly.

IMG_5192 IMG_5195

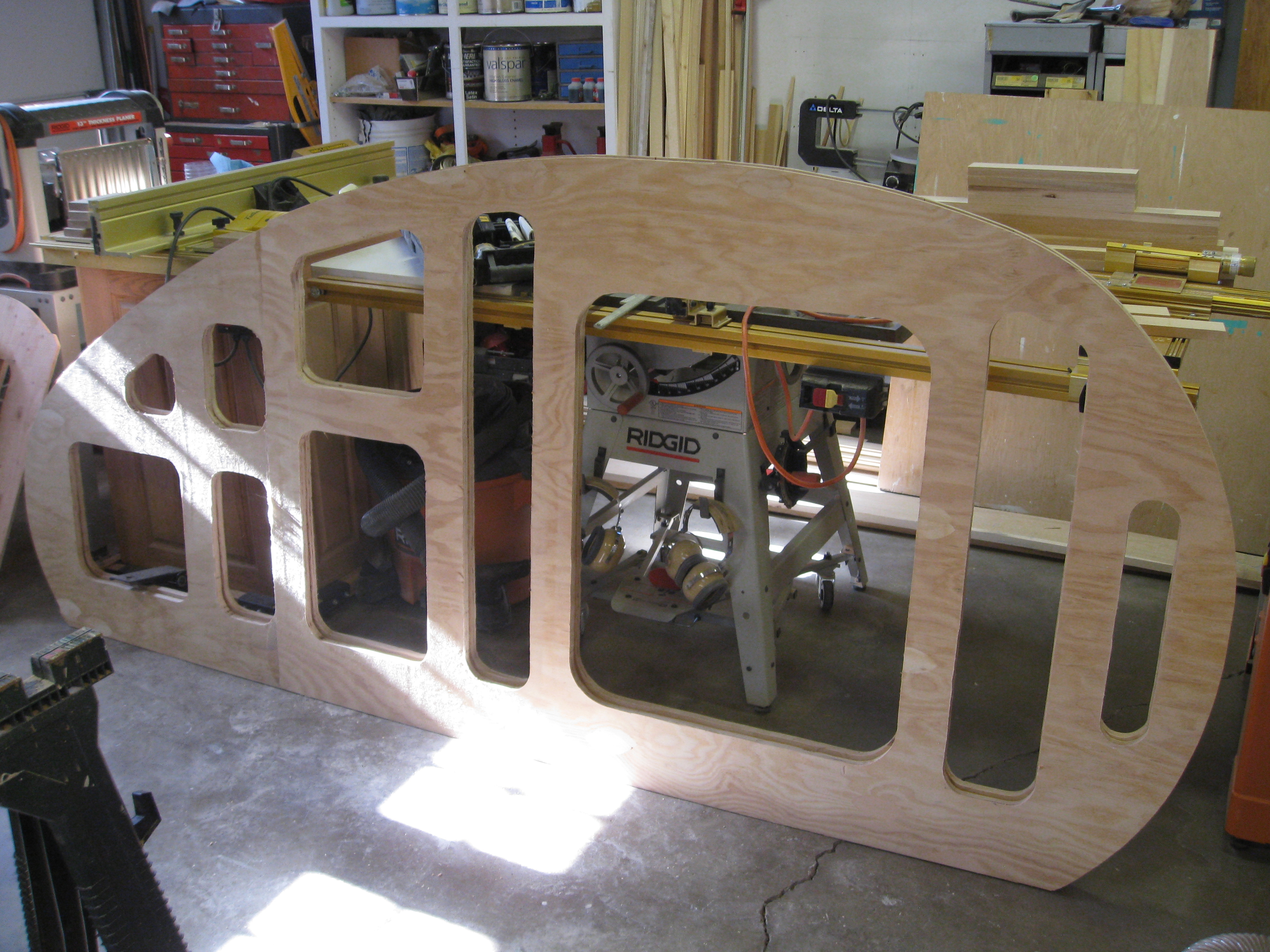

I was worried about the rigidity of the sidewall with all those holes but it still feels quite strong and much lighter!

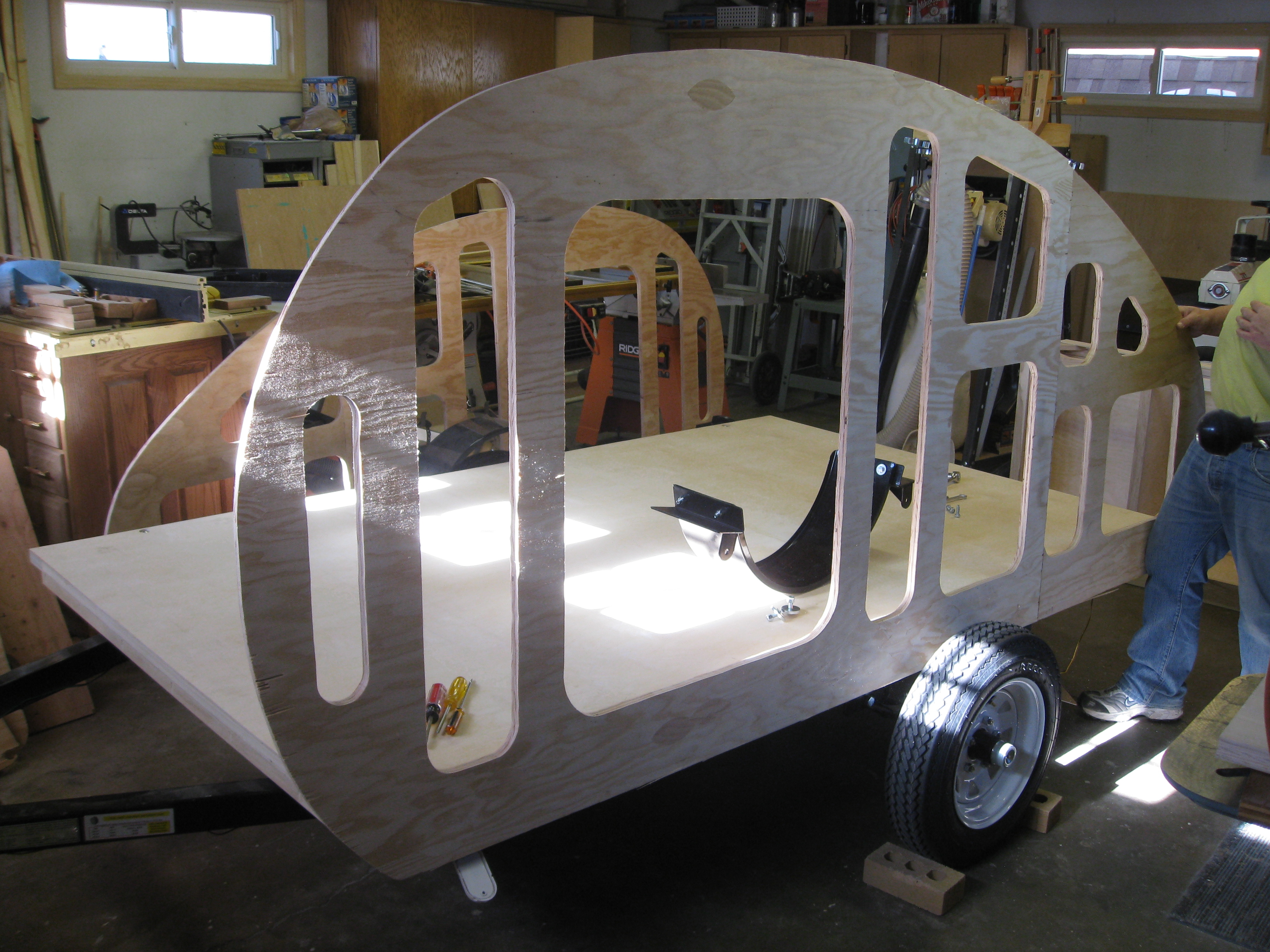

Taking a break to dryfit the sidewall to the deck.


1 2 3 4 5 6 7

About Author

  • It’s probably right in front of me somewhere but what did you skin the inside of the walls with?

    • 5’x5′ 1/8″ baltic birch plywood.

  • Ian Moore

    Hey Ryan,

    Just curious – you used epoxy on the edges of the walls where they come into contact with the metal frame. However later on for the interior of the trailer you used spar varnish. Any reason you can think of why the Minwax spar varnish wouldn’t work in place of the epoxy on the wall edges? I figure they are both means to solving the same problem of waterproofing the wood.

    • That should work fine but it is not a permanent water barrier for external uses and might need to be reapplied in the future. Since most water intrusion would occur on the edge that shouldn’t be an issue to reapply if needed. Take a look at Thompson’s Waterseal instead, it is meant for this purpose and might be a better solution.

      The reason I used epoxy was that I knew I would never have to think about it again, also I had it laying around and was eager to test it out 🙂

  • Mickyeadams

    I’m starting to get a woodworking tool set and learning to use my router and saws as I gear up to make my first TD using your amazing plans. I see some doors from Vintage Tech measuring 26X36 inches and it looks like I have room to increase the door height. Do you see any issues with this?

    • Not at all. A few have used the larger doors with no problem. Good luck to you and keep us updated!
